Wibe Group

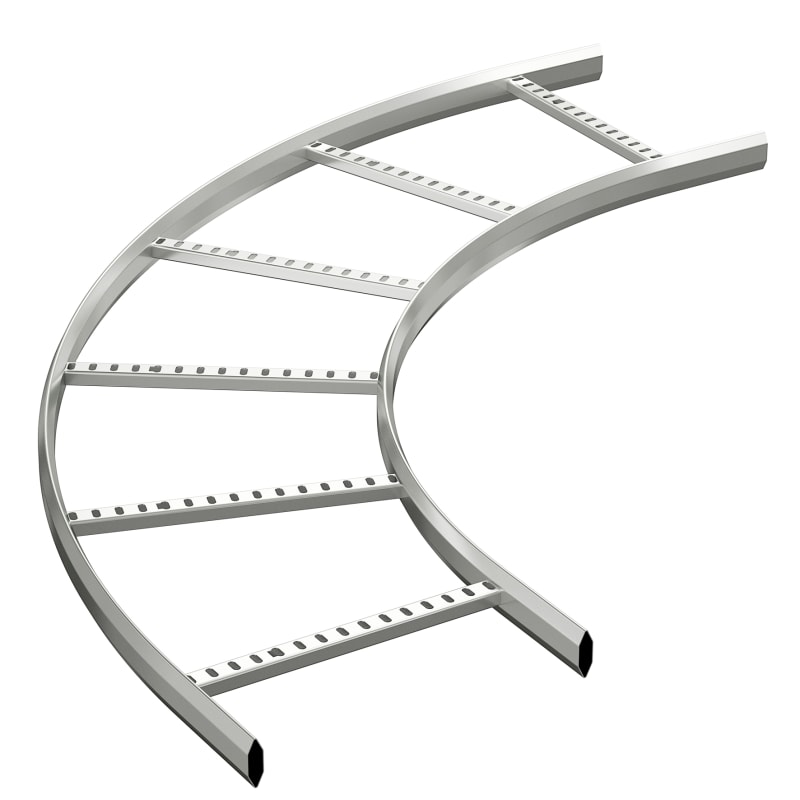

Outer BEND 15/150 90° FZV C4
Part number716179EAN / GTIN7321677161799HS code8544.42
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 716179 Wibe - 90 degree exterior bend 15-150 - inner radius 268 mm - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 716179
- EAN / GTIN
- 7321677161799
- HS code
- 8544.42
- Sales unit
- pcs
- Width
- 150 mm
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Change of direction
- Horizontal
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 150 mm
- Model
- Without connector
- Inner radius
- 536 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 3.2 kg
- Length pack 1
- 833 mm
- Width pack 1
- 147 mm
- Height pack 1
- 55 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 28
- Weight pack 4
- 113 kg
- Length pack 4
- 1300 mm
- Width pack 4
- 800 mm
- Height pack 4
- 710 mm
- Net weight
- 3.2 kg
- Country of origin
- SE
- ETIM class
- EC001535
- GWP Total A1-A3
- 8.928 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677161799
- SAP 1200126748
- Code 82045556
Product Documentation
Document preview: Outer BEND 15/150 90° FZV C4 (716179) — Specification sheet
More from Wibe Group
Wibe Group
Outer BEND 15/500 90° SF
727356
Wibe Group
Beskytt.plate 65-600 Fzs Vit
718913
Wibe Group
Cable trunking W3/60-100 3M Fzs white
782307
Wibe Group
Mounting channel W4-50 2M Z+
CSU795998
Wibe Group
Wibe Group 731730 End Cover W45 for 40-70 mm Cable Tray Pre-Galvanised Steel
Wibe Group
T-piece down 170/72 White RAL9003
STA550053
Wibe Group

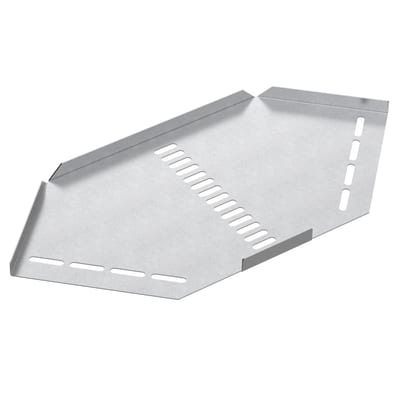

90° bend W4-300 Z+ (CSU796012)
Wibe Group

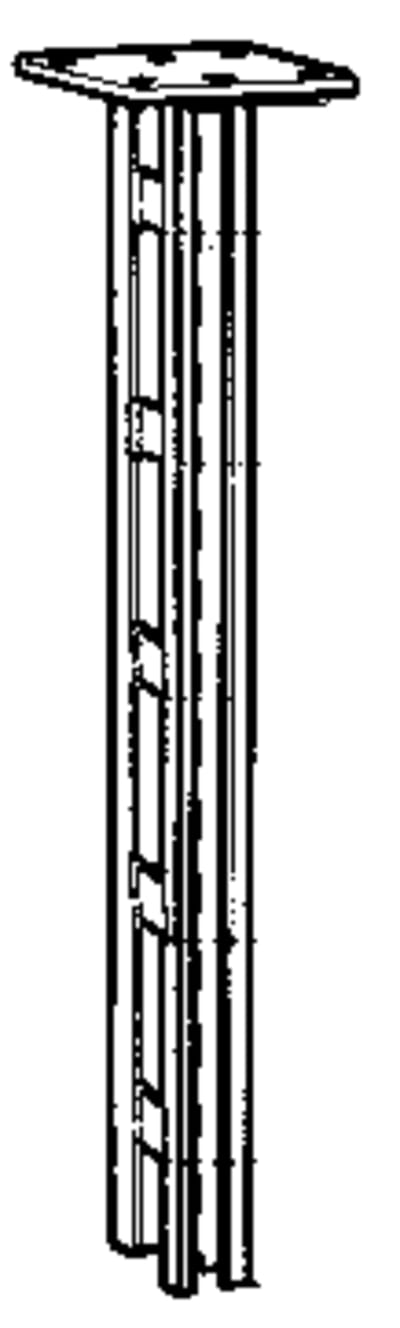

Ceiling Pendant 20F/2000 ZP white
