Wibe Group

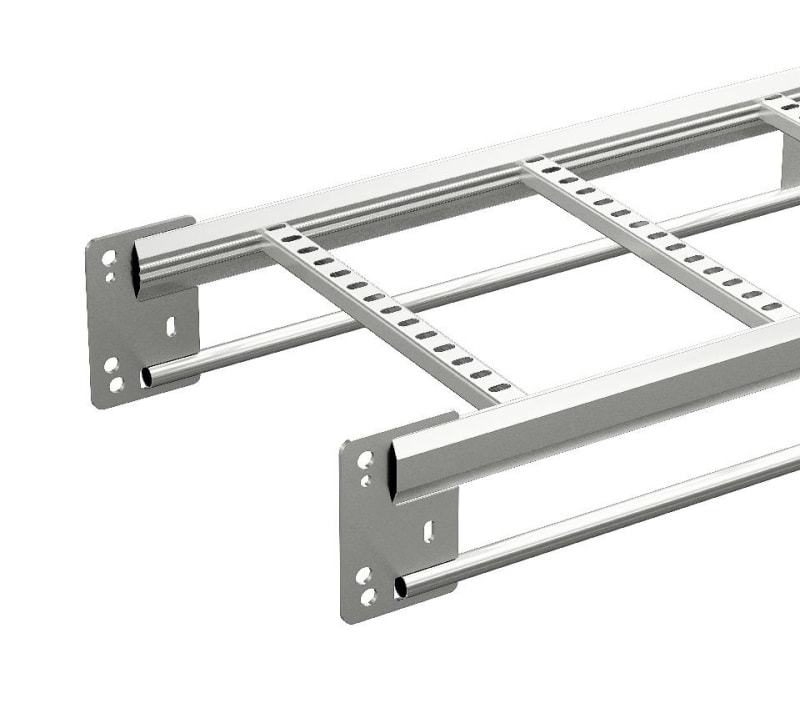

Cable Ladder KHZPV-400 6M FZV C4
Part number717984EAN / GTIN7321677179848HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 717984 Wibe - reinforced cable ladder - KHZPV-400 - with closed side profiles and perforated rungs - 6 m - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 717984 EAN / GTIN: 7321677179848 HS code: 8544.42 Sales unit: m minimum order quantity: 6 Order multiple: 6 Length: 6000 mm Width: 400 mm Height: 150 mm material: Steel material type or surface treatment: Hot-dip galvanized Corrosion class: C4 Type of side joist: Tube shape (closed) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 32000 mm² Rung centre spacing: 250 mm Wide span model: Yes Suitable for circuit integrity: No material quality: Other Surface protection: Hot-dip galvanized Load test type according to IEC 61537: Type II Weight: 4.7 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 28.2 kg Length pack 1: 6100 mm Width pack 1: 400 mm Height pack 1: 134 mm Pack 4 type: Pallet Quantity pack 4: 10 Weight pack 4: 288 kg Length pack 4: 6200 mm Width pack 4: 410 mm Height pack 4: 790 mm Net weight: 28.2 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 78.678 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677179848
- SAP 1000481505
- Code 8593779
Product Documentation
Document preview: Cable Ladder KHZPV-400 6M FZV C4 (717984) — Specification sheet
More from Wibe Group
Wibe Group
Screw set 73S Zinc-plated
791348
Wibe Group
Protection Plate 65/400 FZV C4
730194
Wibe Group
Cable Ladder Khzspz+ -300 4M C4
CSU795123
Wibe Group
Ceiling Bracket 520 FOR 24/20 FZV
718253
Wibe Group
Carrier IRON 3/400 SF
726436
Wibe Group
Pendant Bracket W21 FOR W1/W3/W70 FZV
734618
Wibe Group
Wall bracket Vertical 11/75 ZP HV
713207
Wibe Group

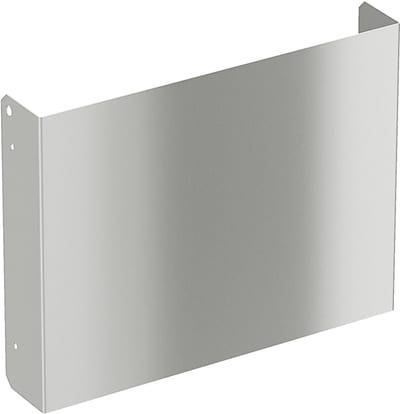

Mounting Plate 61/200 FOR K-Ladder FZV C4
