Wibe Group

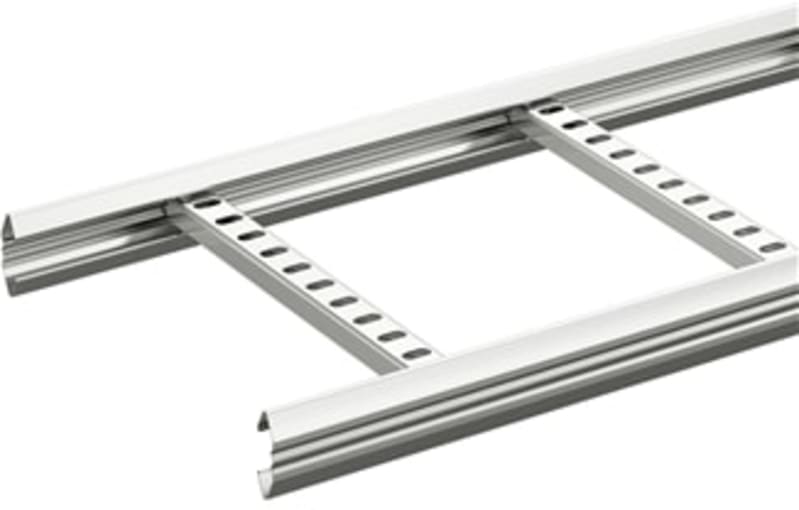

Cable Ladder KHZSP-500 3M SF
Part numberCSU794442EAN / GTIN3606480446825HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU794442 Wibe - cable ladder - KHZSP-500 - open side profiles provided with draining holes and perforated rungs - 3 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- CSU794442 EAN / GTIN: 3606480446825 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 500 mm Height: 55 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX Type of side joist: Profile (open) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 40000 mm² Rung centre spacing: 250 mm Wide span model: No Suitable for circuit integrity: No material quality: Stainless steel 316 L (1.4404) Surface protection: EV020086 Load test type according to IEC 61537: Type II Weight: 2.57 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 7.71 kg Length pack 1: 2995 mm Width pack 1: 498 mm Height pack 1: 55 mm Pack 4 type: Pallet Quantity pack 4: 15 Weight pack 4: 115.65 kg Length pack 4: 2995 mm Width pack 4: 515 mm Height pack 4: 570 mm Net weight: 7.71 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 45.0264 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480446825
- SAP 1000514935
- Code 8956359
Product Documentation
Document preview: Cable Ladder KHZSP-500 3M SF (CSU794442) — Specification sheet
More from Wibe Group
Wibe Group
Bend 49/300 FZV C4 (716390)
Wibe Group
Telerenne 36/100 2M FZS
725066
Wibe Group
Pendelstag 1/800 FOR K-Ladder FZV C4
717642
Wibe Group
Protection Plate 65/600 SF
732485
Wibe Group

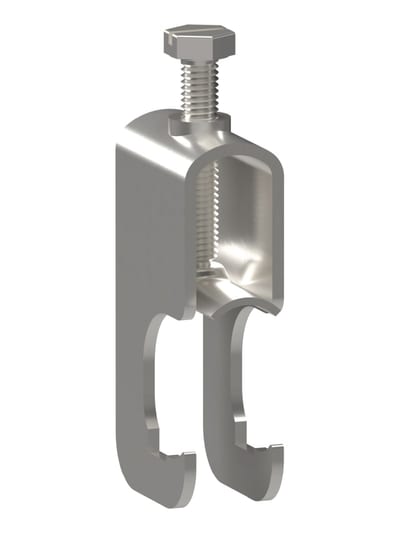

Cable clips ARX2-12 Z+
CSU795609
Wibe Group
Data RJ45 kit Cat 6 keystone White 9003
STA501050
Wibe Group

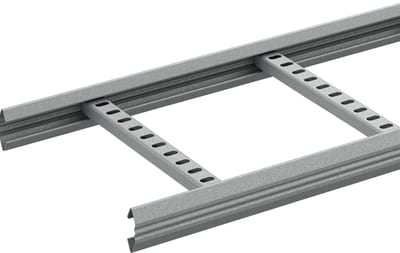

Cable Ladder KHZSP-300 6M FZS
734489
Wibe Group

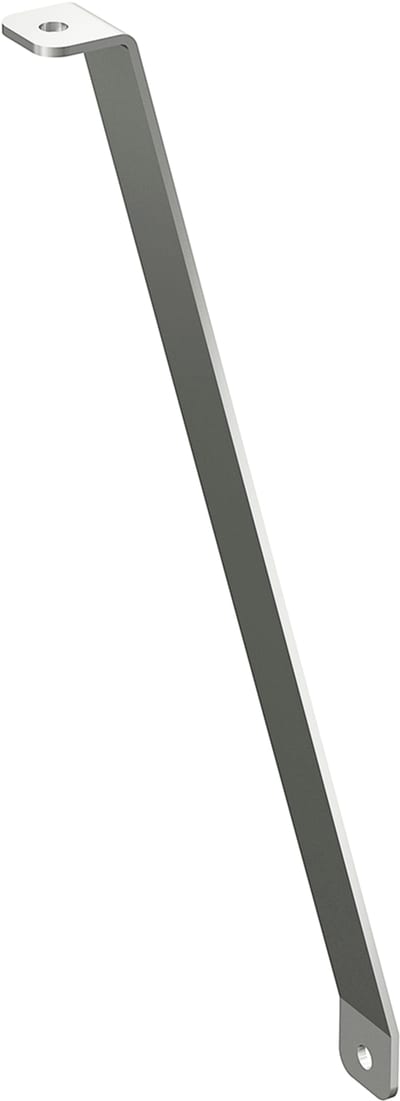

Wibe Group CSU795328 Pendant Support Bar 1-500 AISI 316L Stainless
