Wibe Group

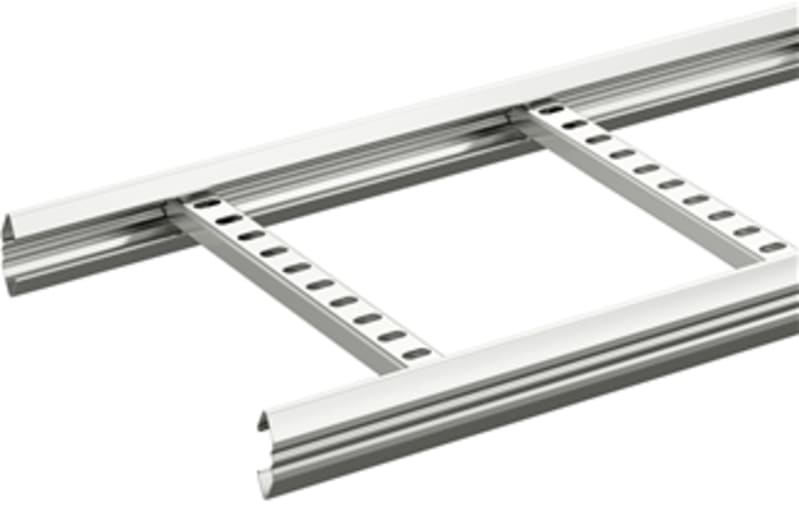

Cable Ladder KHZSP-400 3M SF
Part numberCSU794441EAN / GTIN3606480446818HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU794441 Wibe - cable ladder - KHZSP-400 - open side profiles provided with draining holes and perforated rungs - 3 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- CSU794441 EAN / GTIN: 3606480446818 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 400 mm Height: 55 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX Type of side joist: Profile (open) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 32000 mm² Rung centre spacing: 250 mm Wide span model: No Suitable for circuit integrity: No material quality: Stainless steel 316 L (1.4404) Surface protection: EV020086 Load test type according to IEC 61537: Type II Weight: 2.37 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 7.11 kg Length pack 1: 2995 mm Width pack 1: 398 mm Height pack 1: 55 mm Pack 4 type: Pallet Quantity pack 4: 30 Weight pack 4: 213.3 kg Length pack 4: 2995 mm Width pack 4: 830 mm Height pack 4: 570 mm Net weight: 7.11 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 41.5224 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480446818
- SAP 1000514933
- Code 8956354
Product Documentation
Document preview: Cable Ladder KHZSP-400 3M SF (CSU794441) — Specification sheet
More from Wibe Group
Wibe Group
Joint FOR Cover W5 200mm FZS
712640
Wibe Group
Support beam 400-500 GRP PC1
MS41615PC1
Wibe Group
Pendant Bracket W21 FOR W1/W3/W70 SF
725585
Wibe Group
Pipe Pendant Bracket W73 FZS HV
729055
Wibe Group
Threaded Rod B41 M10X2000MM ELZ
1149462
Wibe Group
Wall Bracket 50F/400 ZP HV
714022
Wibe Group

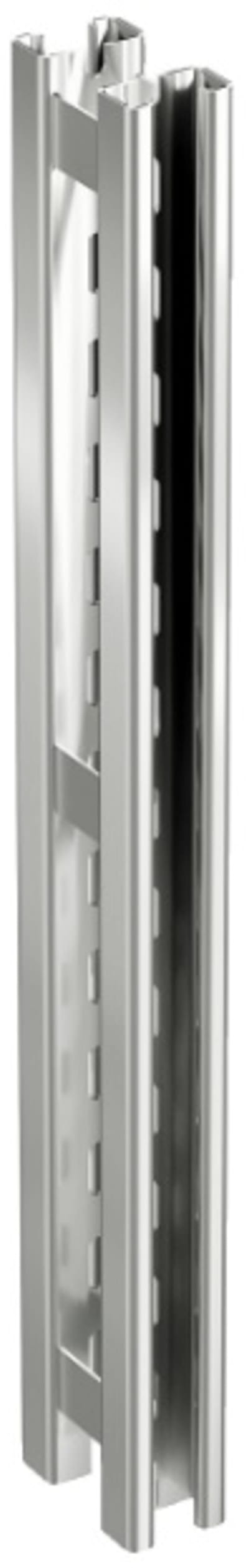

P/A-Rail 24/20F 6M FZV C4
718808
Wibe Group

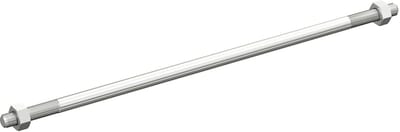

Adapter Bolt 29/200 FZV C4
