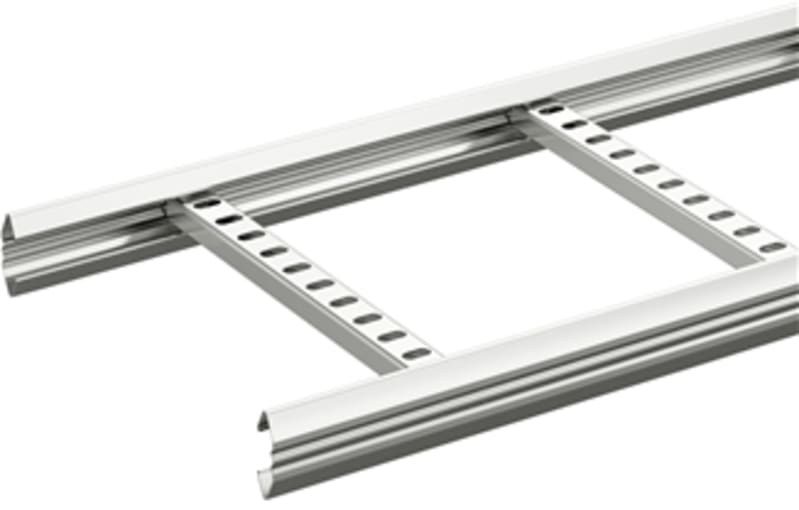

Cable Ladder KHZSP-200 3M SF
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU794439 Wibe - cable ladder - KHZSP-200 - open side profiles provided with draining holes and perforated rungs - 3 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- CSU794439 EAN / GTIN: 3606480446795 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 200 mm Height: 55 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX Type of side joist: Profile (open) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 16000 mm² Rung centre spacing: 250 mm Wide span model: No Suitable for circuit integrity: No material quality: Stainless steel 316 L (1.4404) Surface protection: EV020086 Load test type according to IEC 61537: Type II Weight: 1.98 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 5.94 kg Length pack 1: 2995 mm Width pack 1: 198 mm Height pack 1: 55 mm Pack 4 type: Pallet Quantity pack 4: 30 Weight pack 4: 178.2 kg Length pack 4: 2995 mm Width pack 4: 430 mm Height pack 4: 570 mm Net weight: 5.94 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 34.6896 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480446795
- SAP 1000514929
- Code 8805552
Product Documentation
More from Wibe Group
Wibe Group
Wibe Splice Piece 21 — Zinc + epoxy powder-coated steel, white
791200
Wibe Group
Cable Ladder KHZSP-300 3M FZS
783156
Wibe Group
Data Contact double RJ45 White 9003
STA501045
Wibe Group
Cable Ladder KHZSP-400 6M SF
CSU794447
Wibe Group
Cover inst. box singel White 9003
STA501030
Wibe Group
P/A-Rail 24/48 6M FZV
731719
Wibe Group
Expansion Bolt TEX-C2 M8X95 SF 50 pcs
IMT38024
Wibe Group
Box AP9 Eco Grey + plate W24/40 Fzs
CSU796046
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CSU794439?
- CSU794439 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is CSU794439.
- What is the HS code for CSU794439?
- The customs tariff (HS) code for CSU794439 is 8544.42.
- Who manufactures CSU794439?
- CSU794439 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for CSU794439?
- Yes — the CSU794439 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CSU794439?
- The minimum order quantity is 1.
- Is CSU794439 available?
- Yes — CSU794439 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
