Wibe Group
Cable Ladder KHZP-300 3M FZV
Part number783518EAN / GTIN7321677835188HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

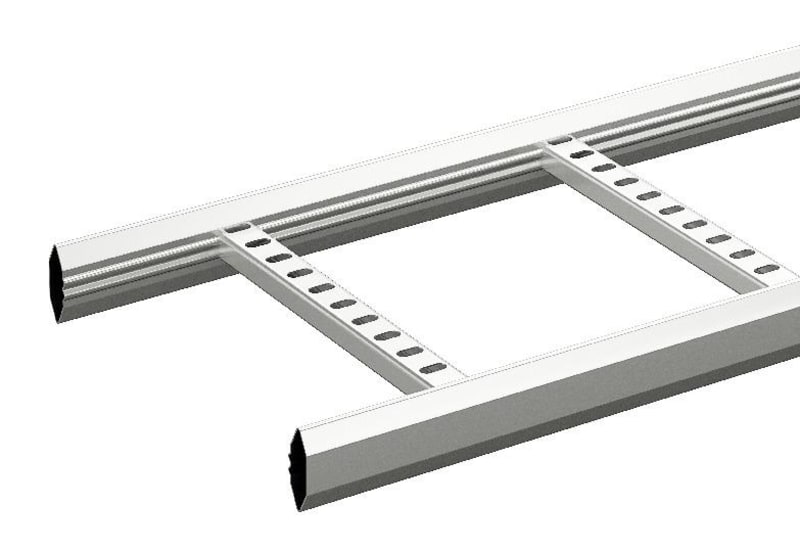

Wibe Group 783518 Wibe - cable ladder - KHZP-300 - closed side profiles and perforated rungs - 3 m - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 783518 EAN / GTIN: 7321677835188 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 300 mm Height: 55 mm material: Steel material type or surface treatment: Hot-dip galvanized Corrosion class: C4 Type of side joist: Tube shape (closed) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 24000 mm² Rung centre spacing: 250 mm Wide span model: No Suitable for circuit integrity: Yes material quality: Other Surface protection: Hot-dip galvanized Load test type according to IEC 61537: Type II Weight: 2.6 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 7.8 kg Length pack 1: 3000 mm Width pack 1: 300 mm Height pack 1: 55 mm Pack 4 type: Pallet Quantity pack 4: 30 Weight pack 4: 234 kg Length pack 4: 3000 mm Width pack 4: 640 mm Height pack 4: 580 mm Net weight: 7.8 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 21.762 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677835188
- SAP 1000616200
- Code 8310475
Product Documentation
Document preview: Cable Ladder KHZP-300 3M FZV (783518) — Specification sheet
More from Wibe Group
Wibe Group
Screw set 25S 8X25MM FZV C4
CSU795277
Wibe Group
Telerenne 36/200 2M FZS
725067
Wibe Group
Cable Trunking W4/15-50 3M FZS
735988
Wibe Group
Ceiling Pendant 2/300 FOR K-Ladder FZV
717191
Wibe Group
Wire mesh tray 120/60-Ø5 U-FORM. 2,5M SF
WBE1149301
Wibe Group
Expansion Bolt TEX-C3 M10X105 FZV C4
IMT38018
Wibe Group
Ceiling Pendant 20/1500 FOR K-Ladder FZV
715726
Wibe Group
Wibe Angle Bracket B27 — Electro-zinc-plated steel
1149169
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 783518?
- 783518 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is 783518.
- What is the HS code for 783518?
- The customs tariff (HS) code for 783518 is 8544.42.
- Who manufactures 783518?
- 783518 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for 783518?
- Yes — the 783518 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 783518?
- The minimum order quantity is 1.
- Is 783518 available?
- Yes — 783518 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
