Wibe Group
Cable Ladder KHZSP-400 3M FZS
Part number783157EAN / GTIN7321677831579HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

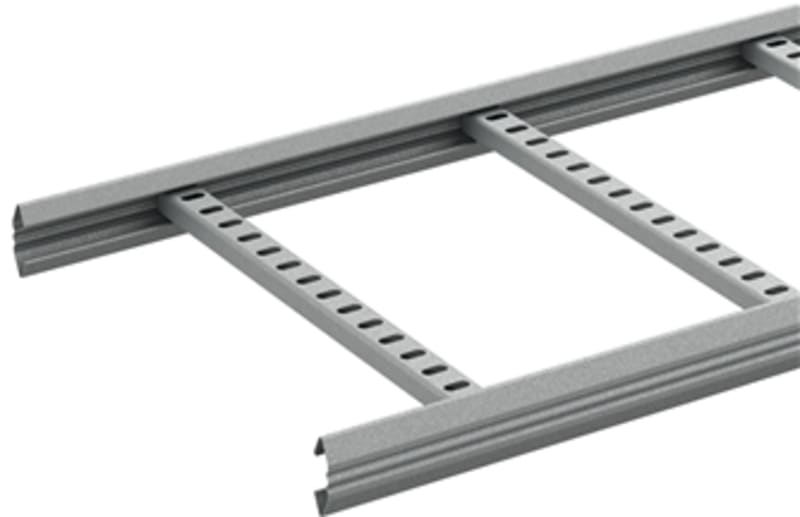

Wibe Group 783157 Wibe - cable ladder - KHZSP-400 - open side profiles and perforated rungs - 3 m - steel pre-galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 783157
- EAN / GTIN
- 7321677831579
- HS code
- 8544.42
- Sales unit
- m
- Package quantity
- 30 m
- Length
- 3000 mm
- Width
- 400 mm
- Height
- 55 mm
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Type of side joist
- Profile (open)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Fixation rung
- Welded
- Useful cross section
- 32000 mm²
- Rung centre spacing
- 250 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized
- Weight
- 2.17 kg/m
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 6.5 kg
- Length pack 1
- 3000 mm
- Width pack 1
- 398 mm
- Height pack 1
- 55 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 30
- Weight pack 4
- 195 kg
- Length pack 4
- 3000 mm
- Width pack 4
- 830 mm
- Height pack 4
- 570 mm
- Net weight
- 6.5 kg
- Country of origin
- SE
- ETIM class
- EC000854
- GWP Total A1-A3
- 18.46 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677831579
- SAP 1000563612
- Code 8109901
Product Documentation
Document preview: Cable Ladder KHZSP-400 3M FZS (783157) — Specification sheet
More from Wibe Group
Wibe Group

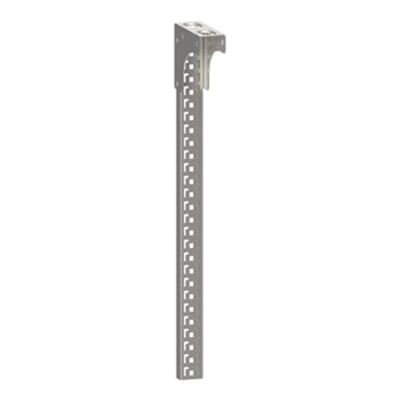

Ceiling Pendant CLX3 24/48 700 FZS
CSU795635
Wibe Group

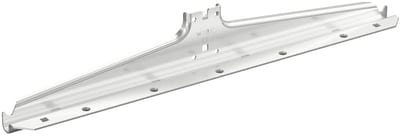

Carrier IRON 3/400 FOR K-Ladder FZV C4
720764
Wibe Group

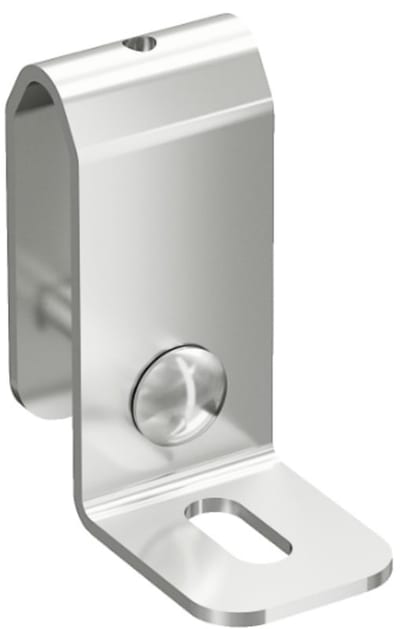

Wall bracket Vertical 11/25 SF
