Mounting channel W4-200 3M Sf
Part number783474EAN / GTIN7321677834747HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

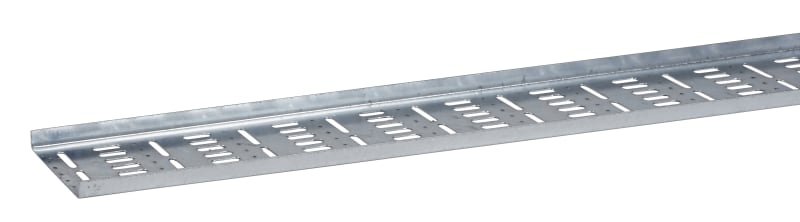

Wibe Group 783474 Wibe - installation tray W4-200 - perforated - 3 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- 783474 EAN / GTIN: 7321677834747 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 200 mm Height: 15 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX material thickness: 1.25 mm Useful cross section: 3750 mm² With cover: No Side wall perforation: No Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No material quality: Stainless steel V4A Weight: 1.9 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 4.46 kg Length pack 1: 3000 mm Width pack 1: 200 mm Height pack 1: 16 mm Pack 4 type: Pallet Quantity pack 4: 78 Weight pack 4: 374 kg Length pack 4: 3050 mm Width pack 4: 640 mm Height pack 4: 370 mm Net weight: 4.46 kg Country of origin: SE ETIM class: EC000047 GWP Total A1-A3: 26.0464 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677834747
- SAP 1000481409
- Code 8870343
Product Documentation
Document preview: Mounting channel W4-200 3M Sf (783474) — Specification sheet
More from Wibe Group
Wibe Group
Wibe Joint W7/40-150 — Hot-dip galvanized steel
791276
Wibe Group
Protection Plate 65-500 1M Sf
732484
Wibe Group
Cable trunking cover 70 2M Fzs
CSU08161003
Wibe Group
Bend kombi cable trunking 50-300 GRP PC1
MCT3139PC1
Wibe Group
Wibe Reducer Joint W28/40-100 — Pre-galvanized steel (787438)
Wibe Group
Wibe Reducer Joint W28/40-250 — Hot-dip galvanized steel
793591
Wibe Group
Ceiling Pendant 2FI-300 FZS C2 White
CSU795300
Wibe Group
T-branch W12F/40-600 Fzv
783678
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 783474?
- 783474 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is 783474.
- What is the HS code for 783474?
- The customs tariff (HS) code for 783474 is 7308.90.
- Who manufactures 783474?
- 783474 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for 783474?
- Yes — the 783474 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 783474?
- The minimum order quantity is 1.
- Is 783474 available?
- Yes — 783474 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
