Wibe Group
Cable trunking W3/60-70 3M Fzs
Part number782202EAN / GTIN7321677822027HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

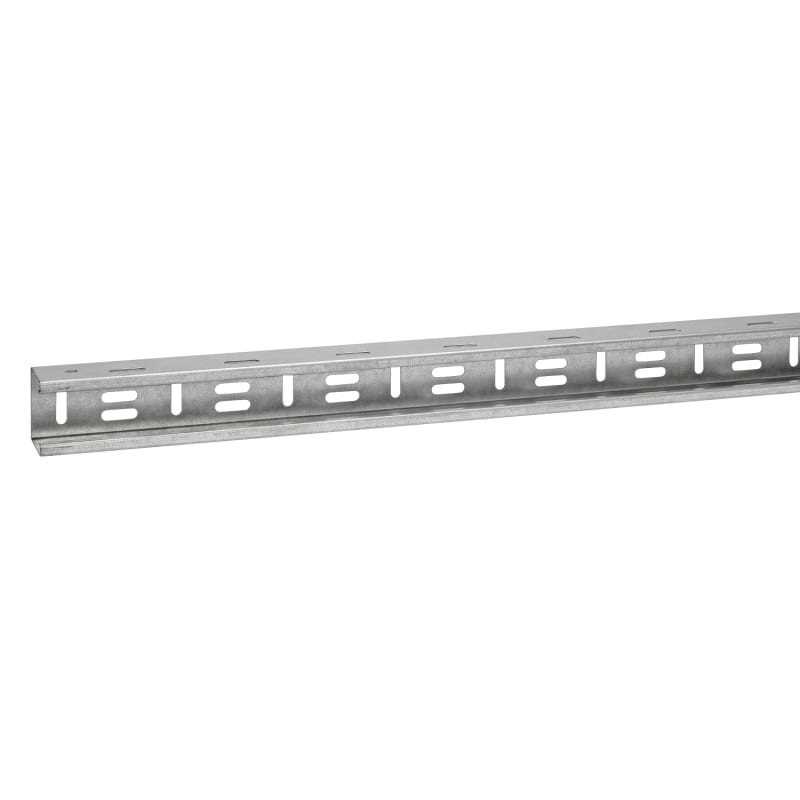

Wibe Group 782202 Wibe - cable tray W3/60-70 - perforated - 3 m - steel pre-galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 782202 EAN / GTIN: 7321677822027 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 70 mm Height: 60 mm material: Steel material type or surface treatment: Pre-galvanized Corrosion class: C2 material thickness: 1 mm Useful cross section: 4200 mm² With cover: No Side wall perforation: Yes Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No Surface protection: Continuously galvanized Weight: 1.5 kg/m Load test type according to IEC 61537: Type I Weight pack 1: 4.5 kg Length pack 1: 3000 mm Width pack 1: 70 mm Height pack 1: 60 mm Pack 4 type: Pallet Quantity pack 4: 120 Weight pack 4: 573 kg Length pack 4: 3000 mm Width pack 4: 800 mm Height pack 4: 520 mm Net weight: 4.5 kg Country of origin: SE ETIM class: EC000047 GWP Total A1-A3: 12.78 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677822027
- SAP 1200826591
- Code 84011974
Product Documentation
Document preview: Cable trunking W3/60-70 3M Fzs (782202) — Specification sheet
More from Wibe Group
Wibe Group
T-Branch W12/40-400 FZS Black 2 pcs
CSU795832
Wibe Group
Wibe Group Cantilever Arm 50i-400 mm FZS Pre-Galvanised Steel White
791419
Wibe Group
Ceiling Pendant 2/700 FOR K-Ladder SF
725560
Wibe Group
Cover cable trunking 300-3000 GRP PC1
MCT3210PC1
Wibe Group
Ceiling Pendant 20/1500 FOR K-Ladder SF
725570
Wibe Group

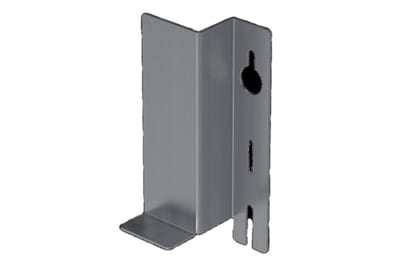

Wibe Group Fixed Wall Bracket 35 mm Height Steel
INS55036
Wibe Group
External Corner 130/72, Black RAL 9017
STA550106
Wibe Group
Cover W5-200 2M Z+ (CSU796025)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 782202?
- 782202 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is 782202.
- What is the HS code for 782202?
- The customs tariff (HS) code for 782202 is 8544.42.
- Who manufactures 782202?
- 782202 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for 782202?
- Yes — the 782202 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 782202?
- The minimum order quantity is 1.
- Is 782202 available?
- Yes — 782202 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
