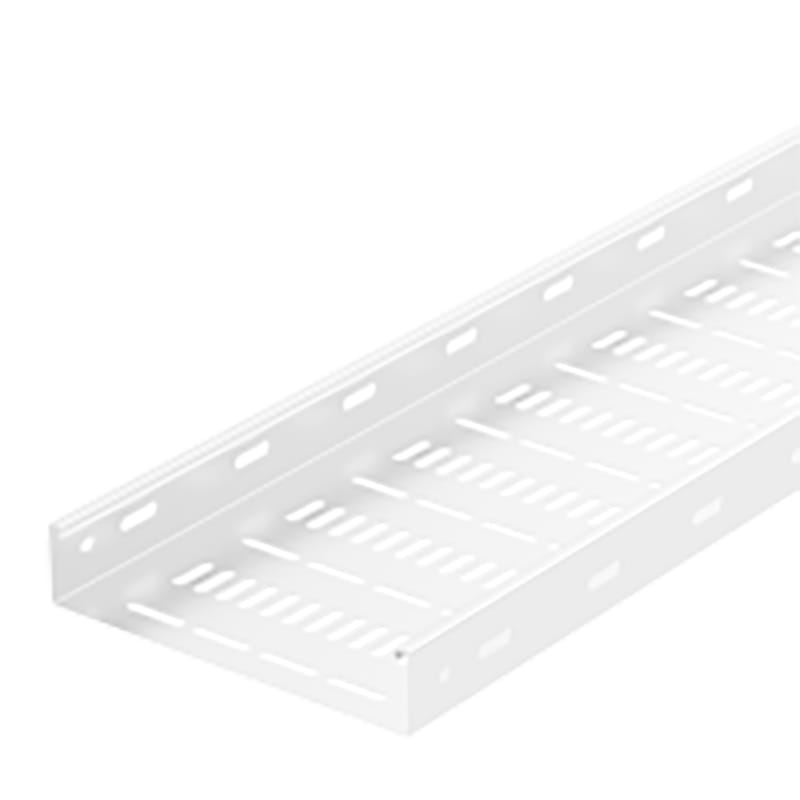

Cable trunking W3/60-150 3M Fzs white
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 782308 Wibe - cable tray W3/60-150 - perforated - 3 m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 782308
- EAN / GTIN
- 7321677823086
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Colour
- White NCS S 0500 N gl30
- Length
- 3000 mm
- Width
- 150 mm
- Height
- 60 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Material thickness
- 1 mm
- Useful cross section
- 9000 mm²
- With cover
- No
- Side wall perforation
- Yes
- Mounting perforation in bottom
- Yes
- NATO
- Yes
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Weight
- 2 kg/m
- Load test type according to IEC 61537
- Type I
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 6 kg
- Length pack 1
- 3000 mm
- Width pack 1
- 150 mm
- Height pack 1
- 60 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 60
- Weight pack 4
- 383 kg
- Length pack 4
- 3000 mm
- Width pack 4
- 800 mm
- Height pack 4
- 560 mm
- Net weight
- 6 kg
- Country of origin
- SE
- ETIM class
- EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677823086
- SAP 1200459409
- Code 82517943
Product Documentation
