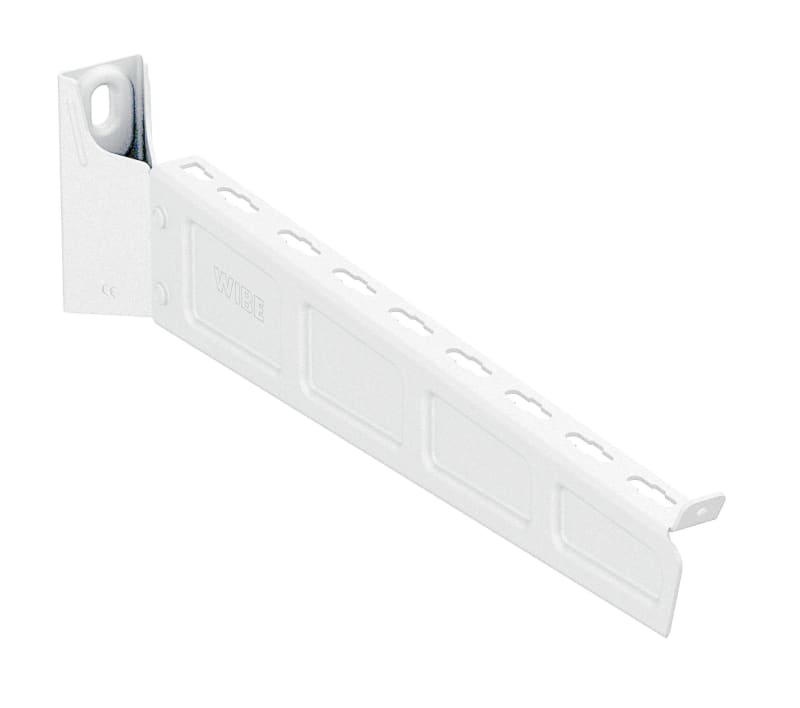

Wibe Group Cantilever Arm 50i-500 mm FZS Pre-Galvanised Steel White
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU795363 is a pre-galvanised painted steel cantilever arm 50i-500 mm, finished in white NCS S 0500 N gl30. It suits cable management widths from 100 to 500 mm at a 90 degree angle with a 1,765 N safe working load per IEC 61537. Overall length 580 mm and height 150 mm; supplied in packs of two.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795363
- EAN / GTIN
- 3606481284525
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 580 mm
- Width
- 50 mm
- Height
- 150 mm
- Suitable for cable management system width
- 100 - 500 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- Max. safe working load according to IEC 61537
- 1765 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.702 kg
- Length pack 1
- 580 mm
- Width pack 1
- 50 mm
- Height pack 1
- 150 mm
- Net weight
- 1.7 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 3606481284525
- SAP 1200826439
- Code 84019024
Product Documentation
