Wibe Group 90° Cable Ladder Bend 600 mm, Sendzimir-Galvanised White
Pricing
Request a quote
We reply within 24 hours
Product Description

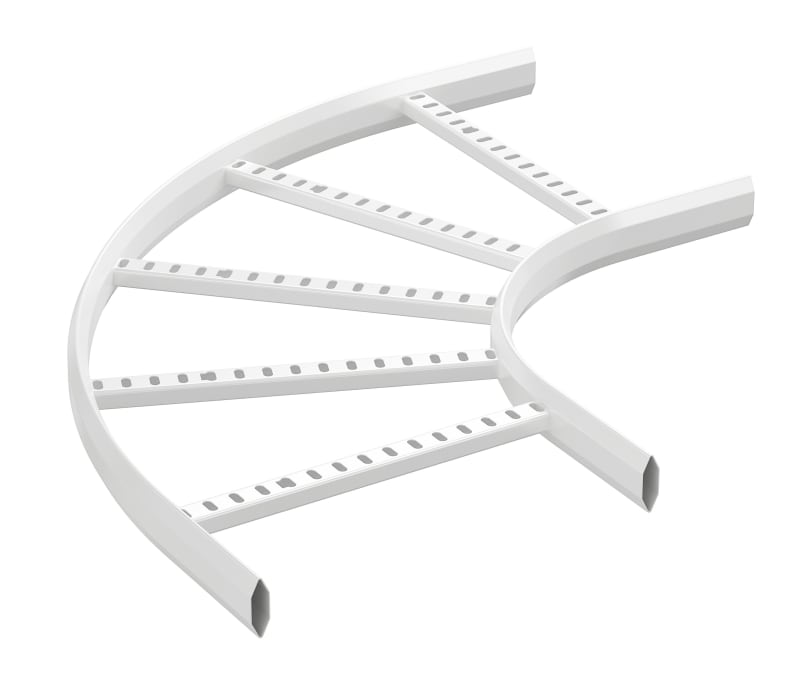

Wibe Group CSU795279 is a 90° horizontal cable ladder bend for the 600 mm wide series with a 250 mm inner radius and 55 mm side-rail height. The steel bend is continuously Sendzimir-galvanised and painted white (NCS S 0500 N gl30) for corrosion class C2 interior environments, with tube-shape closed side rails and perforated profile rungs. Typical application is directional changes in cable ladder routing in indoor commercial and industrial buildings.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795279
- EAN / GTIN
- 3606481279484
- Sales unit
- pcs
- Colour
- White NCS S 0500 N gl30
- Width
- 600 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Change of direction
- Horizontal
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 600 mm
- Model
- Without connector
- Inner radius
- 250 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Surface protection
- Continuously galvanized and coated
- Country of origin
- SE
- ETIM class
- EC001535
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 3606481279484
- SAP 1200826423
- Code 84019020
Product Documentation
More from Wibe Group
Wibe Group
Cover inst. box singel Black 9017
STA501034
Wibe Group
Cable Ladder KHZPV-600 6M ZP HV
723394
Wibe Group
Adjustable Angle W10S/60-70 FZS
782268
Wibe Group
clamp cable ladder cable trunking GRP PC1
MCT2124PC1
Wibe Group
Ceiling Bracket W31 SF
725583
Wibe Group
Wibe Support Beam / Joint W7 40-200 — Pre-galvanized steel
CSU795821
Wibe Group
Wall Bracket 50F/500 ZP HV
718793
Wibe Group
Wall Bracket 50F/600 ZP HV
714023
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CSU795279?
- CSU795279 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is CSU795279.
- What is the HS code for CSU795279?
- The customs tariff (HS) code for CSU795279 is 7308.90.
- Who manufactures CSU795279?
- CSU795279 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for CSU795279?
- Yes — the CSU795279 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CSU795279?
- The minimum order quantity is 1.
- Is CSU795279 available?
- Yes — CSU795279 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
