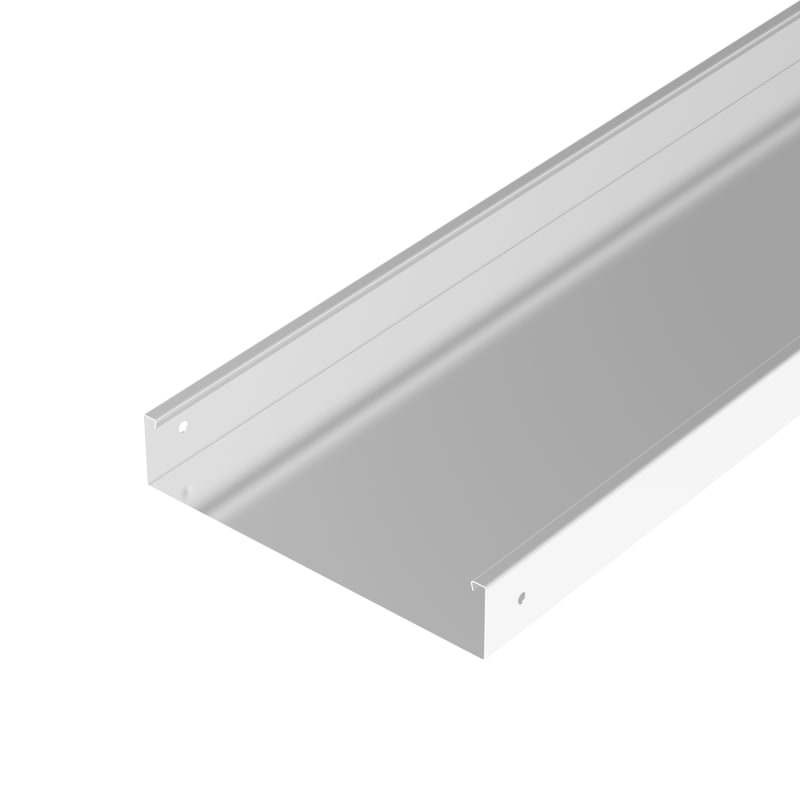

Cable trunking W1/60-600 2M Fzs white
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 782017 Wibe - cable tray W1/60-600 - unperforated - 2 m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 782017
- EAN / GTIN
- 7321677820177
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Length
- 2000 mm
- Width
- 600 mm
- Height
- 60 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Material thickness
- 1.5 mm
- Useful cross section
- 36000 mm²
- With cover
- No
- Side wall perforation
- No
- Mounting perforation in bottom
- No
- NATO
- No
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Weight
- 8.7 kg/m
- Load test type according to IEC 61537
- Type I
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 17.8 kg
- Length pack 1
- 2000 mm
- Width pack 1
- 600 mm
- Height pack 1
- 60 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 12
- Weight pack 4
- 237 kg
- Length pack 4
- 2000 mm
- Width pack 4
- 800 mm
- Height pack 4
- 560 mm
- Net weight
- 17.8 kg
- Country of origin
- SE
- ETIM class
- EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677820177
- SAP 1200826590
- Code 84011979
Product Documentation
More from Wibe Group
Wibe Group
Wibe Group Adjustable Bracket BT110H 110-170 mm
5583534
Wibe Group
Forsterkningsplate T-100 GRP PC1
MS4103PC1
Wibe Group
Wibe Bend Section 51 — Zinc + epoxy powder-coated steel, white
731911
Wibe Group
External corner al 120/72 White 9003
STA520022
Wibe Group

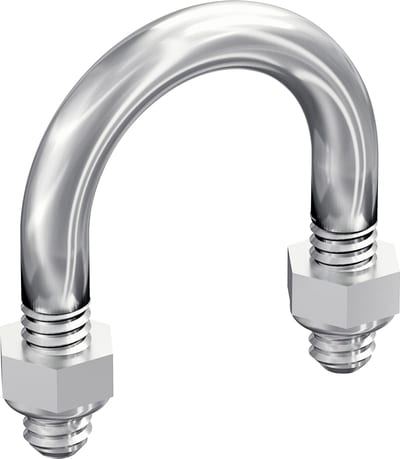

Wibe Clamp Set M6-20 Ø24 mm Stainless AISI316L
725587
Wibe Group

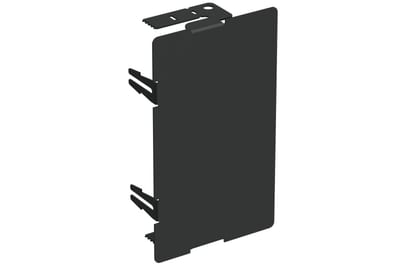

End piece al 120/72 Black RAL9017
STA520032
Wibe Group

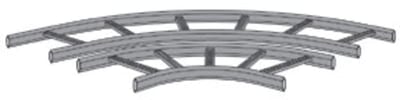

Inner BEND 15/400 90° ZP HV
716078
Wibe Group

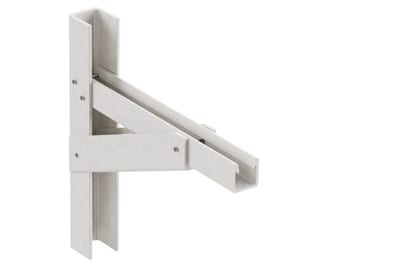

Wibe Group Reinforced Bracket 300mm GRP Polyester Class 1
