Wibe Group

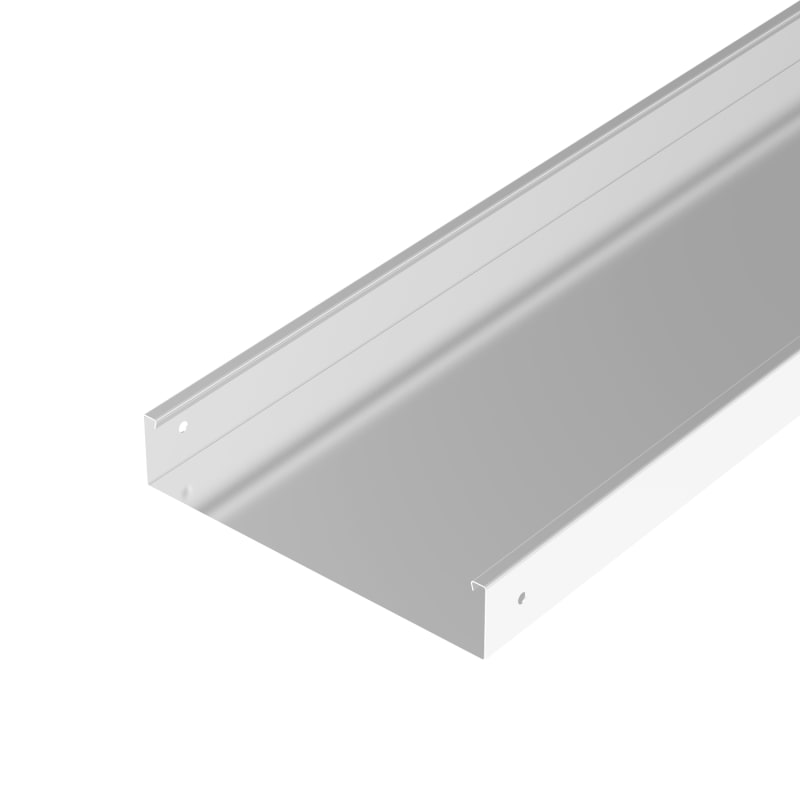

Cable trunking W1/60-70 2M Fzs white
Part number782011EAN / GTIN7321677820115HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 782011 Wibe - cable tray W1/60-70 - unperforated - 2 m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 782011
- EAN / GTIN
- 7321677820115
- HS code
- 8544.42
- Sales unit
- pcs
- Colour
- White NCS S 0500 N gl30
- Length
- 2000 mm
- Width
- 70 mm
- Height
- 60 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Material thickness
- 1 mm
- Useful cross section
- 4200 mm²
- With cover
- No
- Side wall perforation
- No
- Mounting perforation in bottom
- No
- NATO
- No
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Weight
- 1.6 kg/m
- Load test type according to IEC 61537
- Type I
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 3.3 kg
- Length pack 1
- 2000 mm
- Width pack 1
- 70 mm
- Height pack 1
- 60 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 120
- Weight pack 4
- 419 kg
- Length pack 4
- 2000 mm
- Width pack 4
- 800 mm
- Height pack 4
- 560 mm
- Net weight
- 3.3 kg
- Country of origin
- SE
- ETIM class
- EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677820115
- SAP 1200826586
- Code 84011987
Product Documentation
Document preview: Cable trunking W1/60-70 2M Fzs white (782011) — Specification sheet
More from Wibe Group
Wibe Group

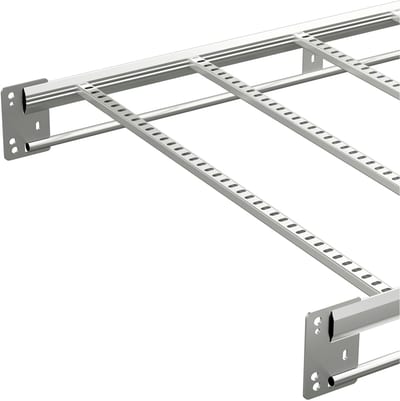

Cable Ladder KHZPV-1000 6M FZV C4
716400
Wibe Group

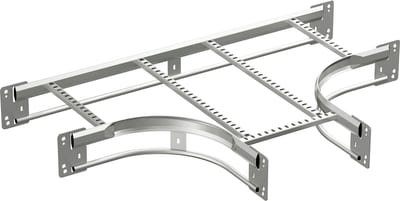

T-Branch 56/600 FZV (716260)
Wibe Group

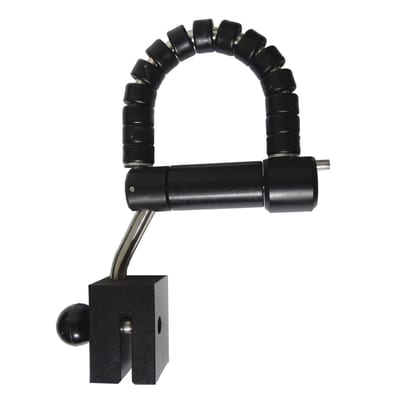

Cable Roll B25 Sf (1653955)
Wibe Group

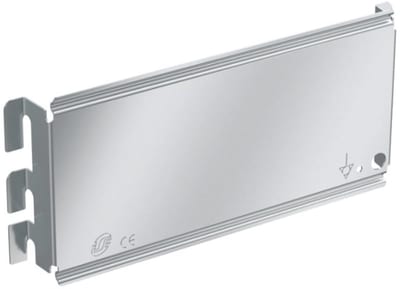

Mounting Plate B5 without HOLE SF
1149368
Wibe Group

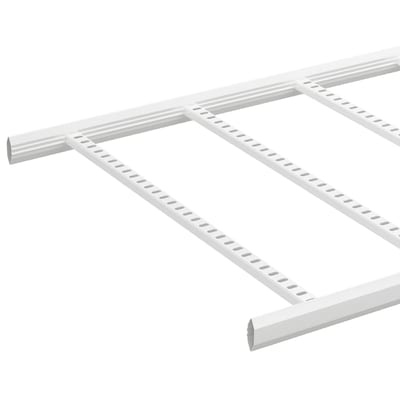

Cable ladder KHZP-800 6M ZP white
728033
Wibe Group

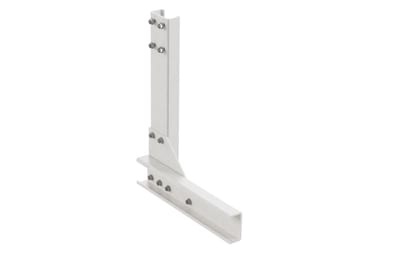

Wibe Group L-Console 300 mm GRP Polyester Class 1
MS4166PC1
Wibe Group

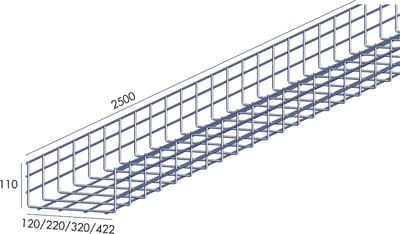

Wire mesh tray 320/110-ø5 2,5M El
1149106
Wibe Group

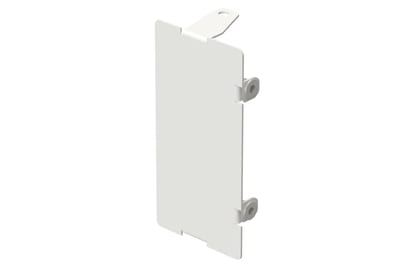

End piece al 120/72 White 9003
