Wibe Group

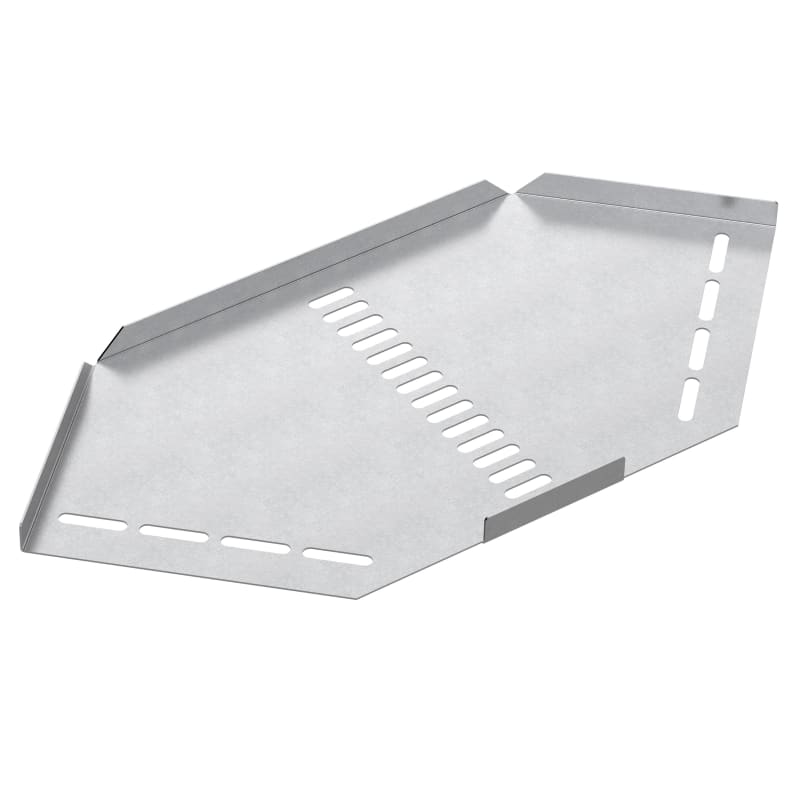

90° Branch W4-75 Fzs white
Part number784114EAN / GTIN7321677841141HS code7308.90
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 784114 Wibe - 90 degree bend W4-75 - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 784114
- EAN / GTIN
- 7321677841141
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Change of direction
- Horizontal
- Angle
- 90°
- Construction type
- Bend rigid
- Bend model
- Segmental bend
- With cover
- No
- Cable tray height
- 15 mm
- Cable tray width
- 75 mm
- Material thickness
- 1 mm
- Side wall perforation
- No
- Mounting perforation in bottom
- Yes
- NATO
- No
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.15 kg
- Length pack 1
- 254 mm
- Width pack 1
- 77 mm
- Height pack 1
- 16 mm
- Pack 2 type
- Bag
- Quantity pack 2
- 2
- Weight pack 2
- 0.3 kg
- Length pack 2
- 260 mm
- Width pack 2
- 80 mm
- Height pack 2
- 20 mm
- Net weight
- 0.15 kg
- Country of origin
- SE
- ETIM class
- EC002400
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677841141
- SAP 1000191477
- Code 8868737
Product Documentation
Document preview: 90° Branch W4-75 Fzs white (784114) — Specification sheet
More from Wibe Group
Wibe Group
Wallframe 120/72 hv 9003
STA520113
Wibe Group
Perf renne W3-400 1,96M Fzs white
736934
Wibe Group
BEND W4-150 90° FZS (784076)
Wibe Group
X-branch W13/60-400 SKH Fzs white
782445
Wibe Group
X-branch W13SKH-500 Fzs white GL30
729151
Wibe Group
Perf renne W3-600 1,96M Fzs white
736936
Wibe Group
Ceiling Pendant BM20FS-4000 Fzv
CSU795913
Wibe Group
Ceiling Pendant BM20FS-1500 Fzv
CSU795910
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 784114?
- 784114 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is 784114.
- What is the HS code for 784114?
- The customs tariff (HS) code for 784114 is 7308.90.
- Who manufactures 784114?
- 784114 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for 784114?
- Yes — the 784114 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 784114?
- The minimum order quantity is 1.
- Is 784114 available?
- Yes — 784114 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
