Wibe Group CSU796021 Vertical Adjustable Bend W4-400, Steel Zinc+
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU796021 W4-400 vertical adjustable riser/descender bend in hot-dip galvanised steel with a Zinc+ Corrosion Class C4 finish. Segmental bend for 400 mm wide cable tray, dimensioned 250 x 402 x 16 mm and supplied without connector.
Technical Specifications
- Manufacturer part number (MPN)
- CSU796021
- EAN / GTIN
- 7321677960217
- Sales unit
- pcs
- Length
- 250 mm
- Width
- 402 mm
- Height
- 16 mm
- Material
- Steel
- Material type or surface treatment
- Zinc+
- Corrosion class
- C4
- Change of direction
- Rising/descending
- Angle
- Adjustable
- Construction type
- Vertical adjustable bend element
- Bend model
- Segmental bend
- With cover
- No
- Cable tray height
- 15 mm
- Cable tray width
- 400 mm
- Material thickness
- 1 mm
- Side wall perforation
- No
- Mounting perforation in bottom
- Yes
- NATO
- Yes
- Model
- Without connector
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Hot-dip galvanized
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.89 kg
- Length pack 1
- 250 mm
- Width pack 1
- 402 mm
- Height pack 1
- 16 mm
- Net weight
- 0.89 kg
- Country of origin
- SE
- ETIM class
- EC002400
- GWP Total A1-A3
- 2.5276 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677960217
- SAP 1200851983
- Code 84073129
Product Documentation
More from Wibe Group
Wibe Group
Carrier IRON W19/40-300 FZS
734402
Wibe Group
End piece W45/60-200 Fzs white
786773
Wibe Group
Mounting channel W4-50 1,96M Fzs white
WBE736633
Wibe Group
Carrier IRON D35/120-220 FZV C4
CSU795347
Wibe Group
T-branch W12/40-50 flat Fzs
CSU795383
Wibe Group

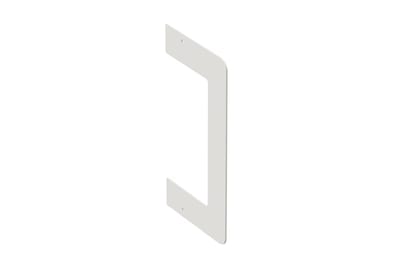

Wallframe 130/72 White RAL9003
STA550035
Wibe Group

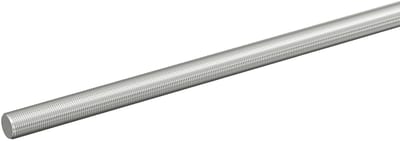

Pendant Bolt W76 M10 3M FZS HV
729062
Wibe Group

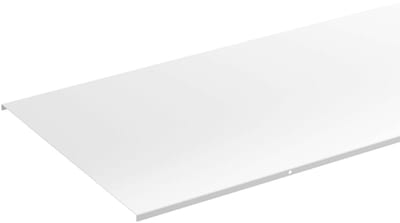

Cover W5-500 2M FZS HV GL30
