Wibe Group

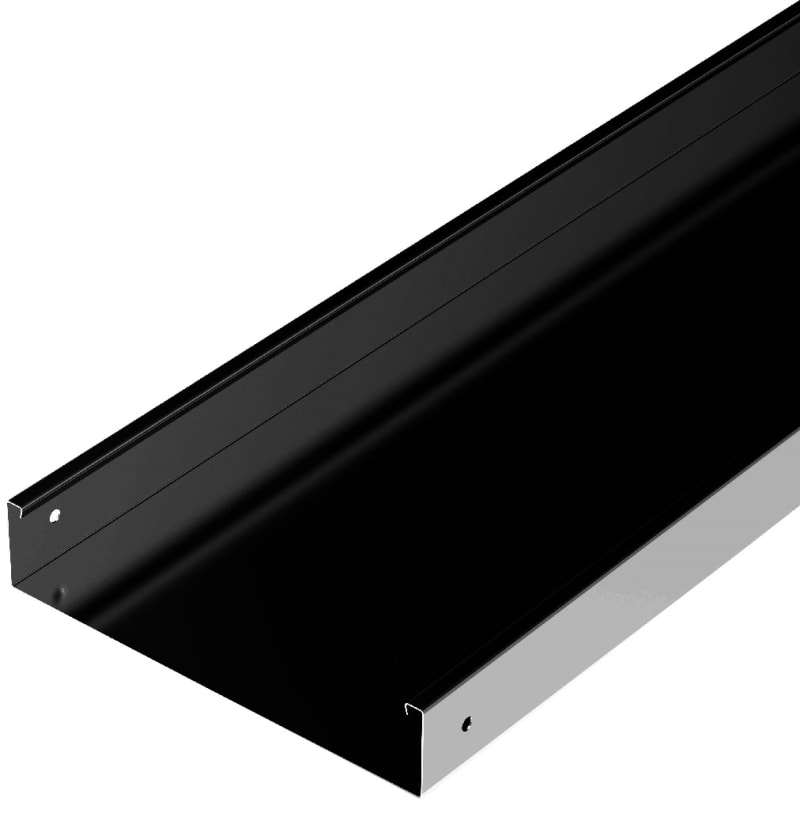

Cable Trunking W1/40-100 2M FZS Black UNPERFORATED.
Part numberCSU795815EAN / GTIN7321677958153HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU795815 Wibe - cable tray W1/40-100 - unperforated - 2 m - steel pre-galvanized - black.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795815
- EAN / GTIN
- 7321677958153
- HS code
- 8544.42
- Sales unit
- m
- Package quantity
- 12 m
- Colour
- Black RAL9005
- Length
- 2000 mm
- Width
- 100 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Height
- 40 mm
- Material thickness
- 0.7 mm
- Useful cross section
- 4000 mm²
- With cover
- No
- Side wall perforation
- No
- Mounting perforation in bottom
- No
- NATO
- No
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- RAL
- 9005
- Weight
- 1.1 kg/m
- Load test type according to IEC 61537
- Type I
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 2 kg
- Length pack 1
- 2000 mm
- Width pack 1
- 100 mm
- Height pack 1
- 40 mm
- Pack 2 type
- Carton
- Quantity pack 2
- 12
- Weight pack 2
- 29 kg
- Length pack 2
- 2000 mm
- Width pack 2
- 260 mm
- Height pack 2
- 120 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 144
- Weight pack 4
- 370 kg
- Length pack 4
- 2000 mm
- Width pack 4
- 800 mm
- Height pack 4
- 630 mm
- Net weight
- 2.4 kg
- Country of origin
- SE
- ETIM class
- EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677958153
- SAP 1200608786
- Code 83000060
Product Documentation
Document preview: Cable Trunking W1/40-100 2M FZS Black UNPERFORATED. (CSU795815) — Specification sheet
More from Wibe Group
Wibe Group
External corner al 120/65 so 9017
STA520039
Wibe Group
90° Bend 55/400 ZP white
716251
Wibe Group
Vertical Bend W11/500 FZV C4
734108
Wibe Group
Bend vertical W11/40-600 White GL30
729132
Wibe Group
Angle Bracket 5L FOR Cable Ladder ZP HV
731792
Wibe Group
Z Reduseringsdel LM100 200mm GRP PC1
MLM2227PC1
Wibe Group

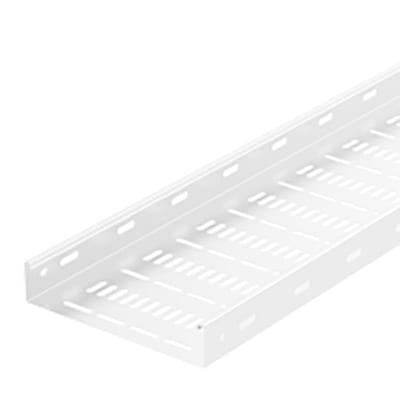

Cable trunking W3/60-200 3M Fzs white
782309
Wibe Group

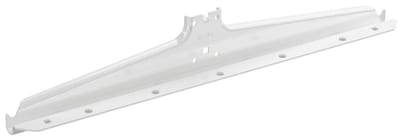

Carrier IRON 3-600 ZP HV 2 pcs
