Wibe Group

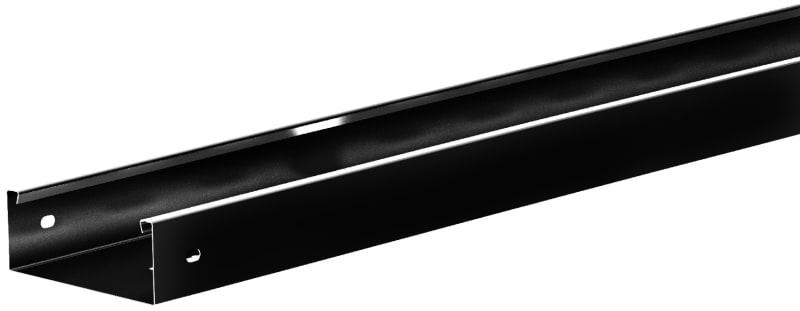

Luminaire rail W70-70 3M FZS Black
Part numberCSU795813EAN / GTIN7321677958139HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU795813 Wibe - lighting trunking W70-70 - 3m - steel pre-galvanized - black.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795813
- EAN / GTIN
- 7321677958139
- Sales unit
- m
- Package quantity
- 8 m
- Colour
- Black RAL9005
- Length
- 3000 mm
- Width
- 70 mm
- Height
- 40 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Application
- lightingtrunking
- Corrosion class
- C2
- Material thickness
- 0.7 mm
- Useful cross section
- 210000 mm²
- With cover
- No
- Side wall perforation
- No
- Mounting perforation in bottom
- Yes
- NATO
- No
- Model
- Without connector
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- RAL
- 9005
- Weight
- 2.7 kg/m
- Load test type according to IEC 61537
- Type I
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 3 kg
- Length pack 1
- 3000 mm
- Width pack 1
- 70 mm
- Height pack 1
- 40 mm
- Pack 2 type
- Carton
- Quantity pack 2
- 8
- Weight pack 2
- 22 kg
- Length pack 2
- 3000 mm
- Width pack 2
- 180 mm
- Height pack 2
- 100 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 128
- Weight pack 4
- 400 kg
- Length pack 4
- 3000 mm
- Width pack 4
- 800 mm
- Height pack 4
- 550 mm
- Net weight
- 2.74 kg
- Country of origin
- SE
- ETIM class
- EC000047
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677958139
- SAP 1200608784
- Code 83000069
Product Documentation
Document preview: Luminaire rail W70-70 3M FZS Black (CSU795813) — Specification sheet
