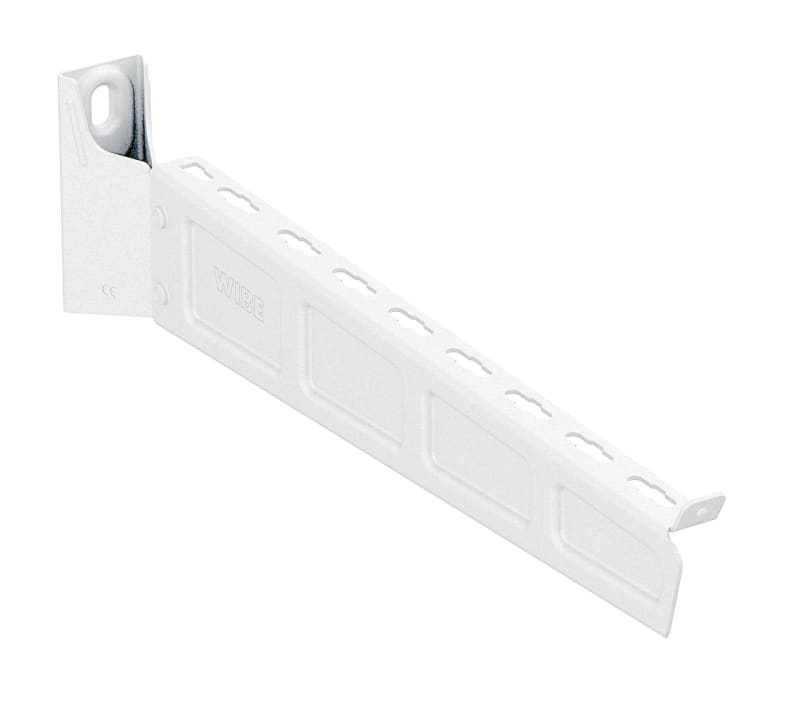

Wibe Group CSU795364 Cantilever Arm 50i-600 mm Pre-Galvanised White
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU795364 Wibe cantilever arm, 50i-600 mm, steel painted white NCS S 0500 N gl30 over pre-galvanised base. Wall- and profile-console model at 90°, with a maximum safe working load of 1765 N per IEC 61537. Country of origin: Sweden.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795364
- EAN / GTIN
- 3606481284532
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 680 mm
- Width
- 50 mm
- Height
- 150 mm
- Suitable for cable management system width
- 100 - 600 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- Max. safe working load according to IEC 61537
- 1765 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.917 kg
- Length pack 1
- 680 mm
- Width pack 1
- 50 mm
- Height pack 1
- 150 mm
- Net weight
- 1.92 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 3606481284532
- SAP 1200627192
- Code 83032714
Product Documentation
