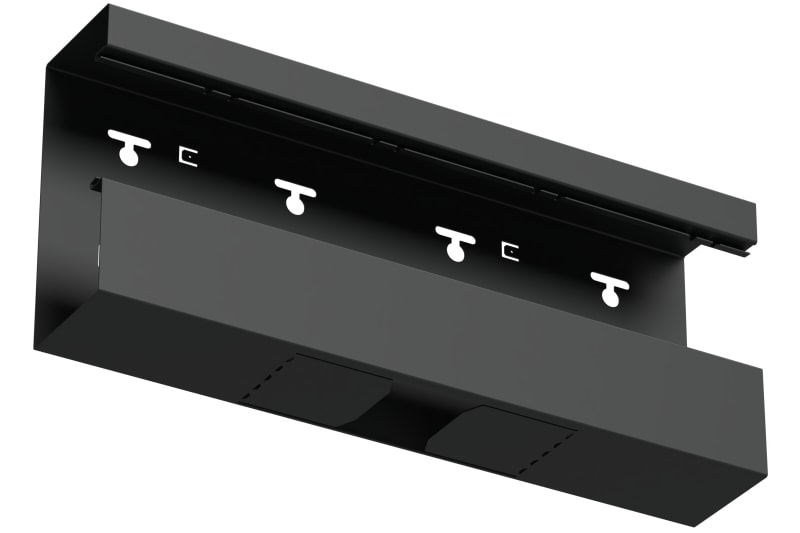

T-piece down 170/72 Black RAL9017
Part numberSTA550144EAN / GTIN8720871002560HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group STA550144 T-piece dropper 170/72mm - steel - black RAL9017/30.
Technical Specifications
- Manufacturer part number (MPN)
- STA550144
- EAN / GTIN
- 8720871002560
- Sales unit
- pcs
- Colour
- RAL 9017
- Dimension
- 170/72
- Length
- 170 mm
- Width
- 72 mm
- Height
- 400 mm
- Material
- Steel
- Material type or surface treatment
- Powder coated
- Depth
- 72 mm
- Width branch
- 170 mm
- Number of covers
- 1
- Cover width 1
- 80 mm
- Symmetric
- No
- Model
- Base unit and cover
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9017
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 1
- Weight pack 1
- 1.6 kg
- Length pack 1
- 400 mm
- Width pack 1
- 295 mm
- Height pack 1
- 95 mm
- Net weight
- 1.6 kg
- Country of origin
- NL
- ETIM class
- EC001939
- GWP Total A1-A3
- 6.42 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 8720871002560
- SAP 1200714406
- Code 83808478
Product Documentation
Document preview: T-piece down 170/72 Black RAL9017 (STA550144) — Specification sheet
More from Wibe Group
Wibe Group
Ceiling Pendant 2F-505 FZB
CSU795330
Wibe Group
Bend inner LM100-90-200 R4 GRP PC1
MLF1156PC1
Wibe Group
T-Branch W12SKH/40-600 FZS HV
729145
Wibe Group
Carrier IRON W19/40-100 FZS Black
CSU795842
Wibe Group
Cable Trunking W4/15-75 3M FZS
735989
Wibe Group
Ceiling Pendant 2FI-1000 FZS C2 White
CSU795299
Wibe Group

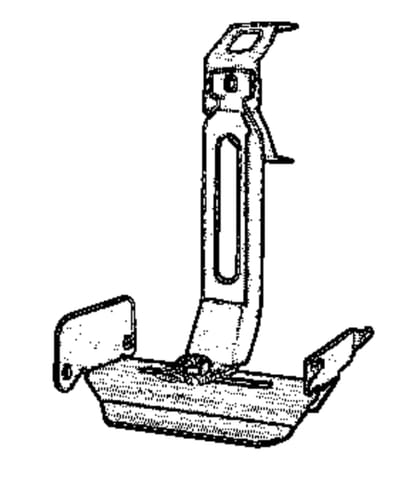

Wibe Group 729028 W20A-100 Support Bracket Steel Pre-Galvanized White GL30
Wibe Group

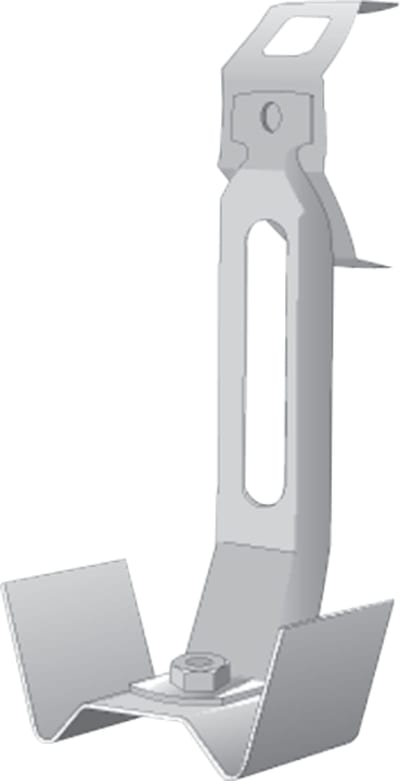

Wibe Group 720970 W20A-70 Support Bracket Steel Pre-Galvanized FZS
