Wibe Group

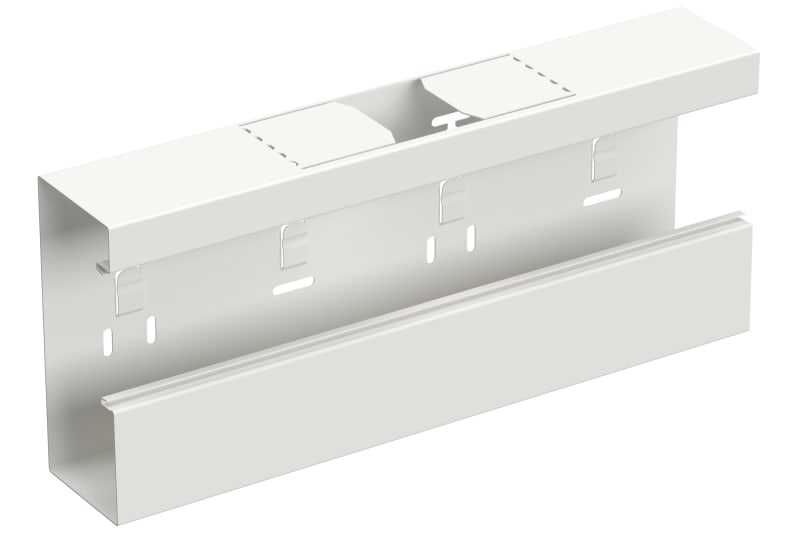

T-piece up 170/72 White RAL9003
Part numberSTA550052EAN / GTIN8720871002409HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group STA550052 T-piece riser 170/72mm - steel - white RAL9003/70.
Technical Specifications
- Manufacturer part number (MPN)
- STA550052
- EAN / GTIN
- 8720871002409
- Sales unit
- pcs
- Colour
- RAL 9003
- Dimension
- 170/72
- Length
- 170 mm
- Width
- 72 mm
- Height
- 400 mm
- Material
- Steel
- Material type or surface treatment
- Powder coated
- Depth
- 72 mm
- Width branch
- 170 mm
- Number of covers
- 1
- Cover width 1
- 80 mm
- Symmetric
- No
- Model
- Base unit and cover
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9003
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 1
- Weight pack 1
- 1.6 kg
- Length pack 1
- 400 mm
- Width pack 1
- 295 mm
- Height pack 1
- 95 mm
- Net weight
- 1.6 kg
- Country of origin
- NL
- ETIM class
- EC001939
- GWP Total A1-A3
- 6.42 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 8720871002409
- SAP 1200714401
- Code 83808587
Product Documentation
Document preview: T-piece up 170/72 White RAL9003 (STA550052) — Specification sheet
More from Wibe Group
Wibe Group
T-branch 16-150 ZP white
716201
Wibe Group
Sido radiusbegrenser B11/6 Fzs
1149439
Wibe Group
Innstallasjonsrail 24/26X53 4M FZV
768063
Wibe Group

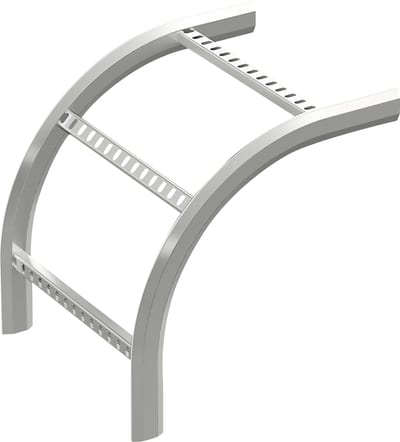

Vertical BEND 18/150 FZV C4
718176
Wibe Group

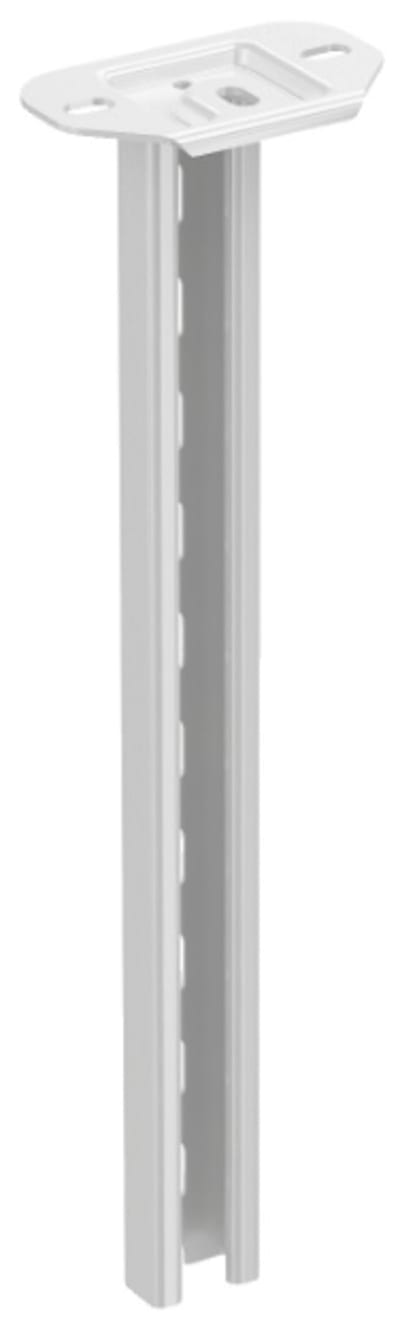

Ceiling Pendant 2F/505 ZP HV
