Wibe Group
T-stycke al 110/55 White RAL9003
Part numberSTA520060EAN / GTIN7321679003318HS code7610.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

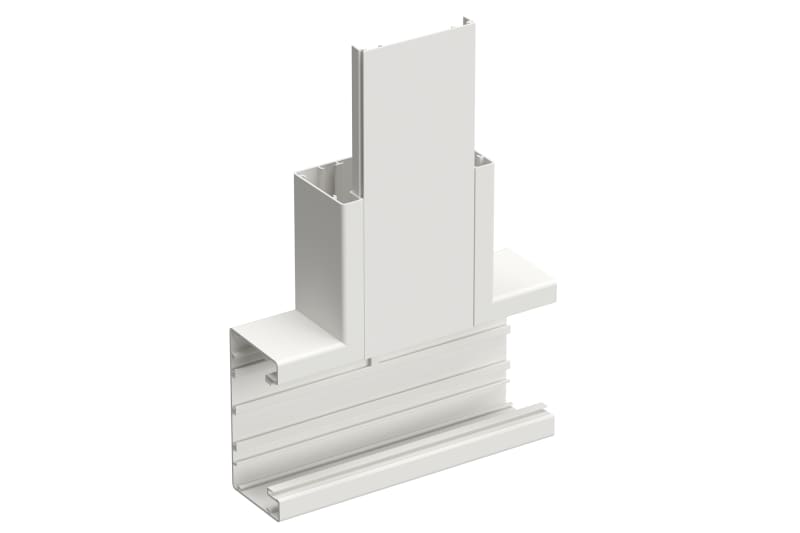

Wibe Group STA520060 T-piece, Stago WGX-A, aluminium, 110/55, specific F80 front included, white RAL9003.
Technical Specifications
- Manufacturer part number (MPN)
- STA520060
- EAN / GTIN
- 7321679003318
- Sales unit
- pcs
- Colour
- RAL 9003
- Dimension
- 110/55
- Length
- 200 mm
- Width
- 200 mm
- Height
- 55 mm
- Material
- Aluminium
- Material type or surface treatment
- Powder coated
- Depth
- 55 mm
- Width branch
- 110 mm
- Number of covers
- 1
- Cover width 1
- 80 mm
- Symmetric
- Yes
- Model
- Base unit and cover
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9003
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- No
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 1
- Weight pack 1
- 0.43 kg
- Length pack 1
- 210 mm
- Width pack 1
- 210 mm
- Height pack 1
- 900 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 30
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.41 kg
- Country of origin
- SE
- ETIM class
- EC001939
- GWP Total A1-A3
- 0.903 kgCO2e
Standards & Compliance
- HS Code
- 7610.90
Cross References
- EAN 7321679003318
- SAP 1200714413
- Code 83808424
Product Documentation
Document preview: T-stycke al 110/55 White RAL9003 (STA520060) — Specification sheet
