Wibe Group
Internal corner 130/72 White RAL9003
Part numberSTA550037EAN / GTIN8720871001808HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

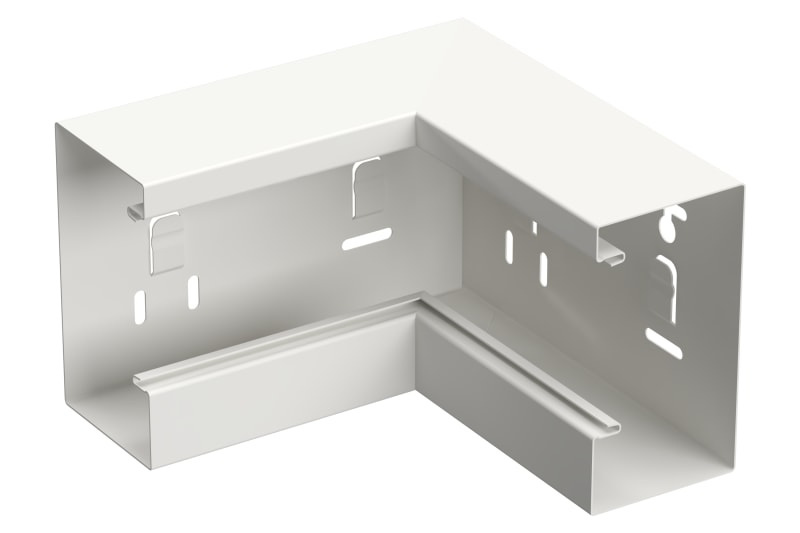

Wibe Group STA550037 Internal corner 130/72mm - steel - white RAL9003/70.
Technical Specifications
- Manufacturer part number (MPN)
- STA550037
- EAN / GTIN
- 8720871001808
- Sales unit
- pcs
- Colour
- RAL 9003
- Dimension
- 130/72
- Length
- 130 mm
- Width
- 72 mm
- Height
- 200 mm
- Material
- Steel
- Material type or surface treatment
- Powder coated
- Depth
- 72 mm
- Shape
- Symmetric
- Number of covers
- 0
- Cover width 1
- 80 mm
- Model
- Base unit
- Angle
- 90 - 90 °
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9003
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 1
- Weight pack 1
- 0.95 kg
- Length pack 1
- 200 mm
- Width pack 1
- 200 mm
- Height pack 1
- 200 mm
- Net weight
- 0.95 kg
- Country of origin
- NL
- ETIM class
- EC000867
- GWP Total A1-A3
- 3.826 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 8720871001808
- SAP 1200714318
- Code 83808472
Product Documentation
Document preview: Internal corner 130/72 White RAL9003 (STA550037) — Specification sheet
More from Wibe Group
Wibe Group
Vertical BEND W4-400 T/Cable Trunking FZS HV
784112
Wibe Group
Wibe Group Load-Bearing Bracket HT-51 Pre-Galvanised
713676
Wibe Group
90° bend W10F/40 -400 Fzv
783666
Wibe Group
Cable trunking cover 120 2M Fzs
CSU08162003
Wibe Group
T-Branch W12SKH/40-600 FZS
723198
Wibe Group
End piece W45/60-500 Fzs white
786776
Wibe Group

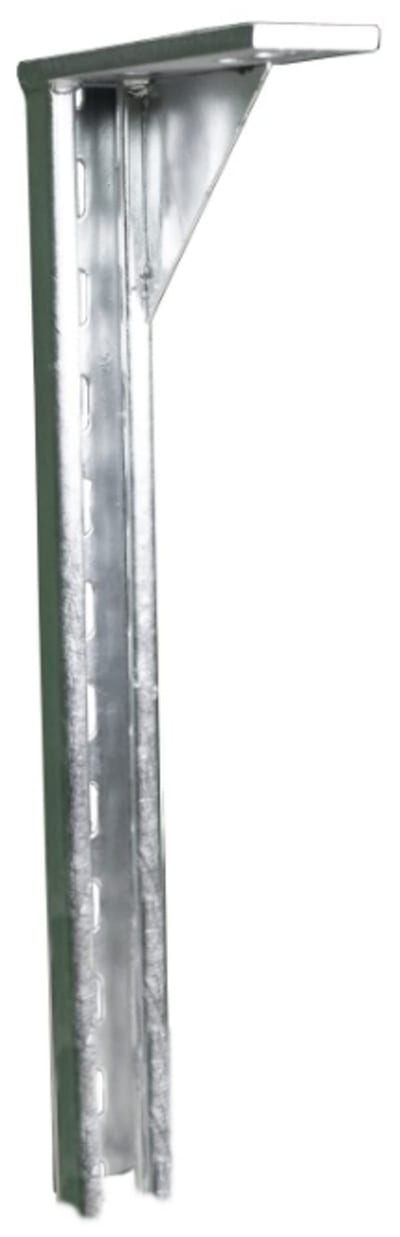

Ceiling Pendant 2FPK/300 FZV
788655
Wibe Group

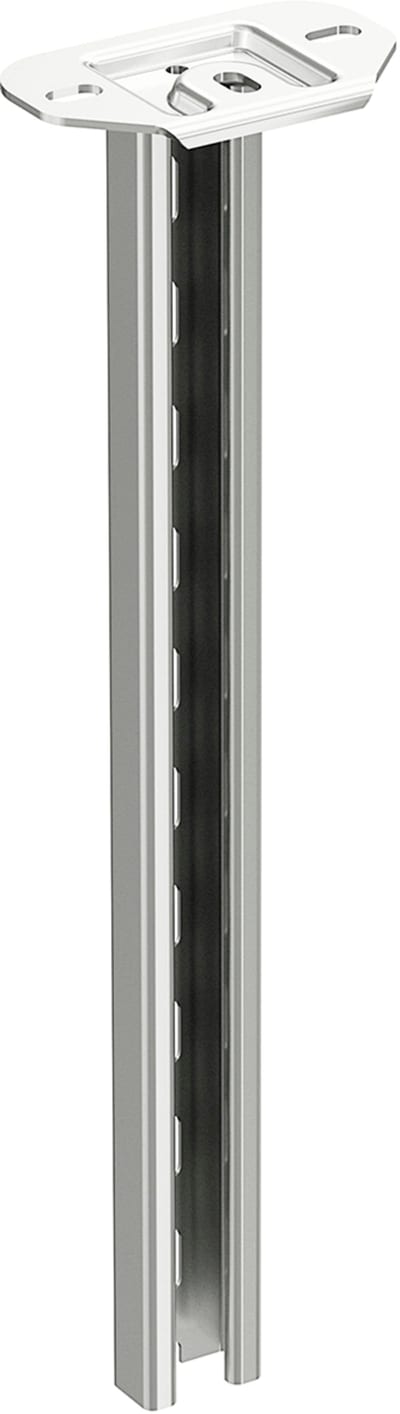

Ceiling Pendant 2F-280 FZB
