Wibe Group
Data RJ45 Cat 6 actassi White 9003
Part numberSTA501055EAN / GTIN7321679003233HS code3925.90
Cables & Wiring
Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

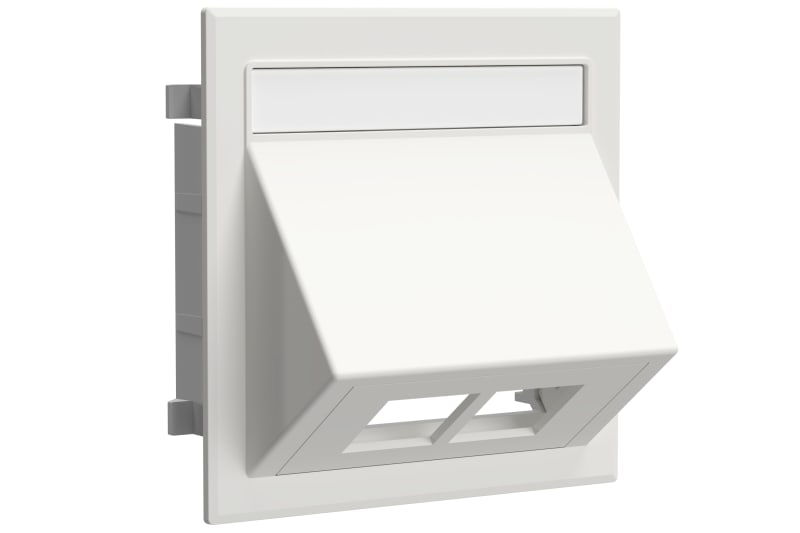

Wibe Group STA501055 Data outlet 2xRJ45 for Actassi - without RJ45 connector - plastic halogen free - white RAL9003.
Technical Specifications
- Manufacturer part number (MPN)
- STA501055
- EAN / GTIN
- 7321679003233
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Wiring Device Component Type
- W828
- Colour
- White RAL9003
- Length
- 83 mm
- Width
- 83 mm
- Height
- 51 mm
- Material
- Plastic
- Surface mounting
- No
- Device depth
- 51 mm
- RAL
- 9003
- With label space
- Yes
- Compatible with third
- No
- Separate strain relief
- No
- Flush
- No
- Outlet direction
- Inclined
- With dust cover
- No
- With terminal resistor
- No
- Degree of protection (IP)
- IP20
- Mechanical coding
- No
- Device width
- 83 mm
- Device height
- 83 mm
- Duct installation
- Yes
- Floor box/sub
- No
- Type of fastening
- Engage (snap)
- Assembly arrangement
- Basic element with full cover plate
- Type of connector
- 2x RJ45 8(8)
- With buses/couplings
- No
- Suitable for number of connectors
- 2
- Pack 1 type
- Bag
- Quantity pack 1
- 1
- Weight pack 1
- 0.16 kg
- Length pack 1
- 83 mm
- Width pack 1
- 83 mm
- Height pack 1
- 51 mm
- Pack 2 type
- Carton
- Quantity pack 2
- 10
- Weight pack 2
- 0.9 kg
- Length pack 2
- 330 mm
- Width pack 2
- 240 mm
- Height pack 2
- 90 mm
- Pack 3 type
- Carton
- Quantity pack 3
- 40
- Weight pack 3
- 3.5 kg
- Length pack 3
- 395 mm
- Width pack 3
- 260 mm
- Height pack 3
- 350 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 720
- Weight pack 4
- 75 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 870 mm
- Net weight
- 0.04 kg
- Country of origin
- CN
- ETIM class
- EC001264
- GWP Total A1-A3
- 0.56385 kgCO2e
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 7321679003233
- SAP 1200714335
- Code 83808619
Product Documentation
Document preview: Data RJ45 Cat 6 actassi White 9003 (STA501055) — Specification sheet
