Front Cover 2-Way Master White RAL 9003
Pricing
Request a quote
We reply within 24 hours
Product Description

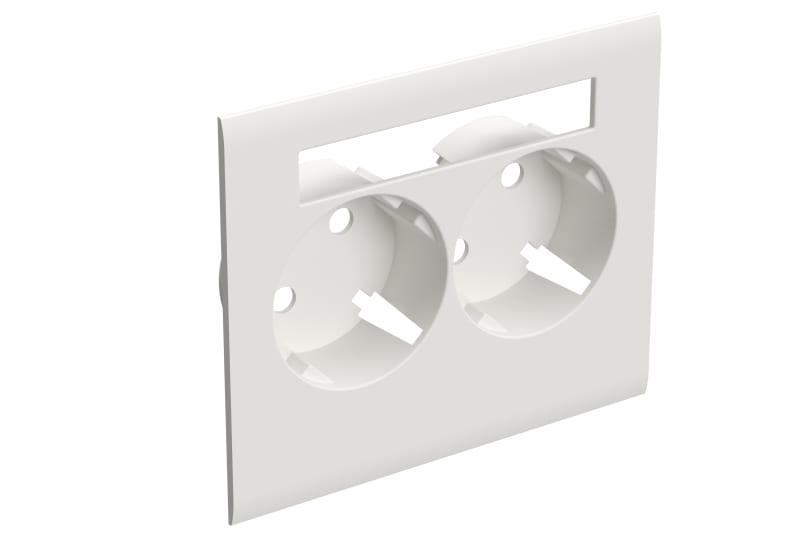

Wibe Group STA501015 is a front cover F80 for a 2-way base master socket, in halogen-free plastic finished in white RAL 9003. Dimensions 100 × 84 × 19 mm with label window; compatible with W815Q wiring device components, rated IP20. Suitable for compact wall-duct installations.
Technical Specifications
- Manufacturer part number (MPN)
- STA501015
- EAN / GTIN
- 7321679003097
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Wiring Device Component Type
- W815Q
- Colour
- White RAL9003
- Length
- 100 mm
- Width
- 84 mm
- Height
- 19 mm
- Material
- Plastic
- Cover width
- 80 mm
- Number of units
- 2
- Type of device
- Socket outlet for wall duct, 2-fold
- Model
- Plain
- Material quality
- Other
- Halogen free
- Yes
- Surface protection
- Untreated
- RAL
- 9003
- With protective foil
- No
- Type of fastening
- Inner lying
- Joint cover
- No
- With label area
- Yes
- Degree of protection (IP)
- IP20
- Pack 1 type
- Bag
- Quantity pack 1
- 1
- Weight pack 1
- 0.16 kg
- Length pack 1
- 100 mm
- Width pack 1
- 84 mm
- Height pack 1
- 19 mm
- Pack 2 type
- Carton
- Quantity pack 2
- 20
- Weight pack 2
- 2 kg
- Length pack 2
- 290 mm
- Width pack 2
- 240 mm
- Height pack 2
- 90 mm
- Pack 3 type
- Carton
- Quantity pack 3
- 80
- Weight pack 3
- 4 kg
- Length pack 3
- 395 mm
- Width pack 3
- 260 mm
- Height pack 3
- 310 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 1440
- Weight pack 4
- 80 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 770 mm
- Net weight
- 0.03 kg
- Country of origin
- CN
- ETIM class
- EC000023
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7321679003097
- SAP 1200714436
- Code 83808338
Product Documentation
