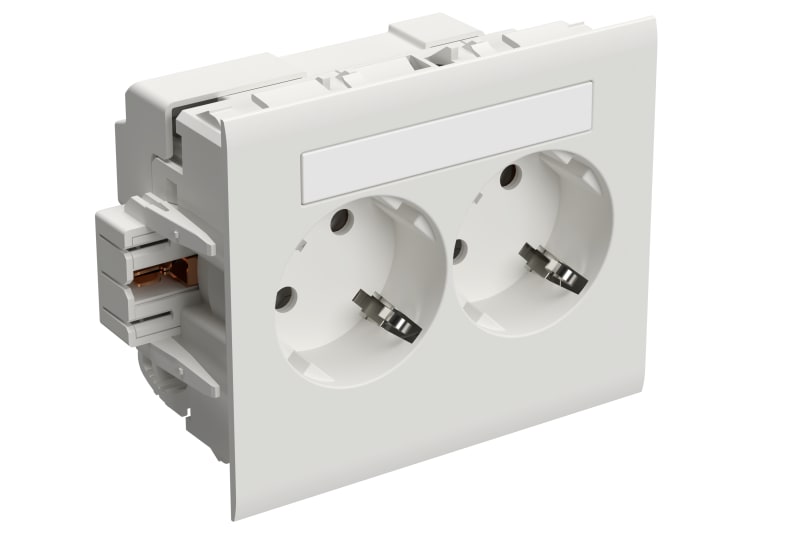

Wibe Group STA501000 Socket Outlet 2-Way Master QC White RAL9003
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group STA501000 socket outlet, 2-way base with quick-connect F80, label window, halogen-free plastic, in white RAL9003. Rated 16 A / 250 V and IP20 for wall-duct mounting.
Technical Specifications
- Manufacturer part number (MPN)
- STA501000
- EAN / GTIN
- 7321679003028
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Wiring Device Component Type
- W815Q
- Colour
- White RAL9003
- Length
- 116 mm
- Width
- 84 mm
- Height
- 52 mm
- Material
- Plastic
- Model
- EV024206
- Number of active pins (round)
- 4
- Number of active pins (flat)
- 0
- With signal lamp
- No
- With built
- No
- Number of socket outlets switchable
- 0
- Number of phases
- 1
- Imprint/indication
- None
- Connection type
- Push-in clamp
- With hinged lid
- No
- With enhanced contact protection
- Yes
- Label space/information surface
- Yes
- RAL
- 9003
- Metallic colour
- No
- Transparent
- No
- Lockable
- No
- Eject
- No
- Insulated mounting
- Yes
- With function lighting
- No
- With orientation lighting
- No
- Over voltage protection
- No
- Fault current protection
- No
- With miniature fuse
- No
- Mounting method
- Wall duct
- Type of fastening
- Snap mounting (engagement)
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- With on/off switch
- No
- With loop through function
- No
- Rotated central insert
- Yes
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Frequency
- 50 - 50 Hz
- Suitable for degree of protection (IP)
- IP20
- Device width
- 116 mm
- Device height
- 84 mm
- Device depth
- 50 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Min. depth of built
- 52 mm
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- For heavy conditions (according to VDE) (EFDE0005)
- No
- Pack 1 type
- Bag
- Quantity pack 1
- 1
- Weight pack 1
- 0.17 kg
- Length pack 1
- 116 mm
- Width pack 1
- 84 mm
- Height pack 1
- 52 mm
- Pack 2 type
- Carton
- Quantity pack 2
- 10
- Weight pack 2
- 2.07 kg
- Length pack 2
- 330 mm
- Width pack 2
- 240 mm
- Height pack 2
- 90 mm
- Pack 3 type
- Carton
- Quantity pack 3
- 40
- Weight pack 3
- 8.3 kg
- Length pack 3
- 395 mm
- Width pack 3
- 260 mm
- Height pack 3
- 350 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 720
- Weight pack 4
- 155 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 870 mm
- Net weight
- 0.17 kg
- Country of origin
- CN
- ETIM class
- EC000125
- GWP Total A1-A3
- 1.97974 kgCO2e
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7321679003028
- SAP 1200714380
- Code 83808444
Product Documentation
More from Wibe Group
Wibe Group
Pendant W32 3M ZP White
783122
Wibe Group
Wire mesh tray mini B30-U 2M Fzv
1149225
Wibe Group

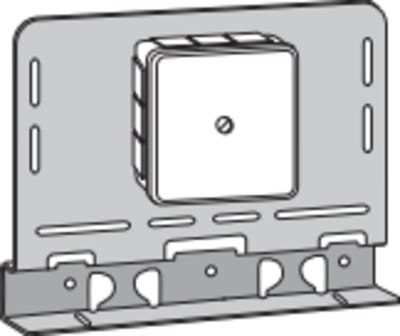

Mounting plate W24 mboks IP55 UP Fzs White
731964
Wibe Group

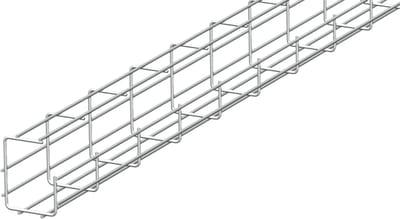

G-wire mesh tray B120X150 2,5M Elz
1149139
Wibe Group

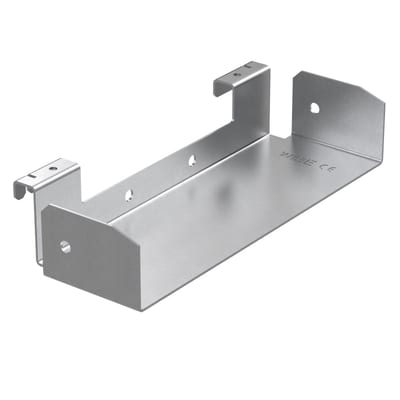

Wibe T-Joint W29-100 — Pre-galvanized steel
724943
Wibe Group
Wibe Support Beam / Joint W7/40-70 — Pre-galvanized steel
CSU795819
Wibe Group

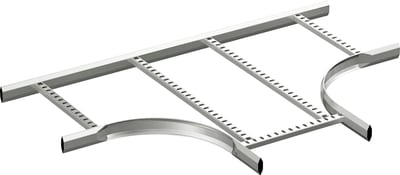

T-Branch 16/300 SF (727360)
