Weld flange with collar stainless - 65, 76,1mm, 40bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar stainless. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 65, for pipes with outer diameter 76.1 mm, pressure pn 40 bar. Supplied under manufacturer part number GW15085600, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 65
- For pipes with outer diameter
- 76.1 mm
- Pressure PN
- 40 bar
- Number of bolt holes
- 8 pcs
- Bolt hole diameter
- 18 mm
- Bolt dimension
- 16 mm
- Bolt circle diameter
- 145 mm
- Flange thickness
- 22 mm
- Diameter
- 185 mm
- Material certificate
- EN 10204 3.1
- D1 dimension
- 122 mm
- N1 dimension
- 90 mm
- H2 dimension
- 52 mm
- H3 dimension
- 10 mm
- R1 dimension
- 6 mm
- S dimension
- 2.9 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 11B
- Weight
- 3.68 kg
- F1 dimension
- 3 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0102 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GW15085600
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW15085600
Product Documentation
More from Generic
Generic
DIN 6921 Flange Bolt stainless A2 KL. 70 - M12, 25mm, 50PCS, 30mm
6921120254
Generic
O-ring NBR (nitrile) - 13.6mm, Shore 70, 2,80mm
158224
Generic
DIN 975 Threaded Rod, Grade 8.8, Metric Thread, Electro-Galvanised (FZB) - M12 x 2000 mm
89751220002
Generic
Hygienic Clamp Gasket ISO 1127, K106, FKM (Viton®)
DC43825855
Generic
Eurostandard Electrical Elbow - 50mm, 50mm, 16bar, 45°
2116160050
Generic
DIN 913 Grub Screw with flat end 45H black - M24, 25mm, 25PCS
913240251
Generic
DIN 912 Allen Screw Cylindrical Acid-Resistant A4 - M20, 110mm, 25PCS, 32mm
912201106
Generic

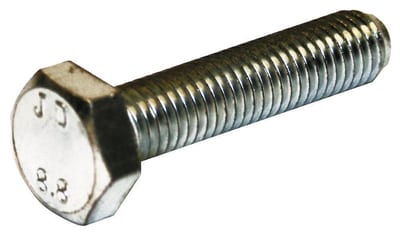

ISO 4017 / DIN 933 Hex Head Set Screw, Grade 8.8, Electro-Galvanised (FZB) - M16 x 180 mm, 25 pcs
