Weld flange with collar stainless - 50, 60,3mm, 16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar stainless. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 50, for pipes with outer diameter 60.3 mm, pressure pn 16 bar. Supplied under manufacturer part number GW12085115, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 50
- For pipes with outer diameter
- 60.3 mm
- Pressure PN
- 16 bar
- Number of bolt holes
- 4 pcs
- Bolt hole diameter
- 18 mm
- Bolt dimension
- 16 mm
- Bolt circle diameter
- 125 mm
- Flange thickness
- 18 mm
- Diameter
- 165 mm
- Material certificate
- EN 10204 3.1
- D1 dimension
- 102 mm
- N1 dimension
- 74 mm
- H2 dimension
- 45 mm
- H3 dimension
- 8 mm
- R1 dimension
- 6 mm
- S dimension
- 2.9 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 11B
- Weight
- 2.53 kg
- F1 dimension
- 3 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0070 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GW12085115
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW12085115
Product Documentation
More from Generic
Generic
3000# Nipple acid-resistant NPT - 2", 1", 3000LBS
TT62213632
Generic

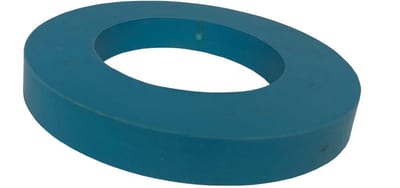

Rubber protector DN25 blue - 35mm, 95mm
RDP025B
Generic
DIN 931 Bolt Hot-dip galvanised FZV 8.8 - M12, 280mm, 25PCS
931122803
Generic
P235GH Weld Bend - 88.9mm, 6,3mm, 90°
014320361
Generic

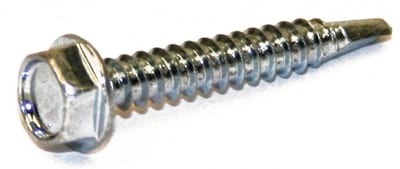

DIN 7504K Hex Head Self-Drilling Screw Electro-Galvanised FZB with Flange - 4.8 mm, 70 mm
