Weld flange with collar stainless - 250, 273mm, 25bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar stainless. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 250, for pipes with outer diameter 273 mm, pressure pn 25 bar. Supplied under manufacturer part number GW16088476, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 250
- For pipes with outer diameter
- 273 mm
- Pressure PN
- 25 bar
- Number of bolt holes
- 12 pcs
- Bolt hole diameter
- 30 mm
- Bolt dimension
- 27 mm
- Bolt circle diameter
- 370 mm
- Flange thickness
- 32 mm
- Diameter
- 425 mm
- Material certificate
- EN 10204 3.1
- D1 dimension
- 335 mm
- N1 dimension
- 298 mm
- H2 dimension
- 88 mm
- H3 dimension
- 18 mm
- R1 dimension
- 12 mm
- S dimension
- 7.1 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 11B
- Weight
- 24.3 kg
- F1 dimension
- 3 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0676 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GW16088476
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW16088476
Product Documentation
More from Generic
Generic
DIN 912 Cylindrical-Head Allen Screw stainless A2 - M6 x 10 mm, 500 pcs
912060104
Generic

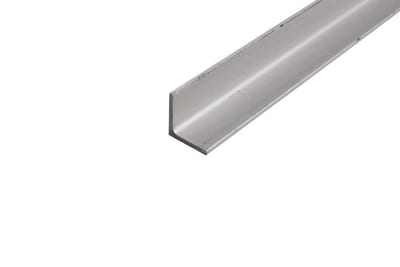

Angle steel acid-resistant rolled/pickled EN 4404 - 20mm, 20mm, 3mm, 6M, 0.88KG/m
8200200300
Generic

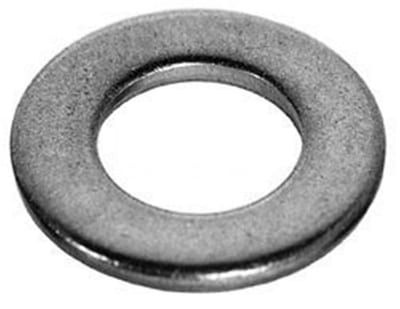

DIN 125B Beveled Washer HV200 black - 16mm, 17mm, 30mm, 50PCS, 3mm
7090161
Generic

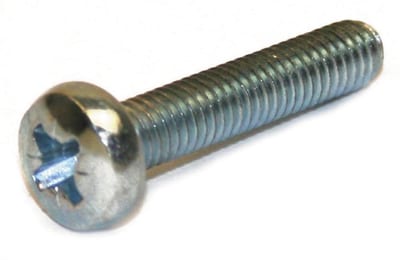

DIN 7985 Machine Screw Pozidriv Pan Head Electro-Galvanised FZB - 4 x 5 mm
79850400052
Generic

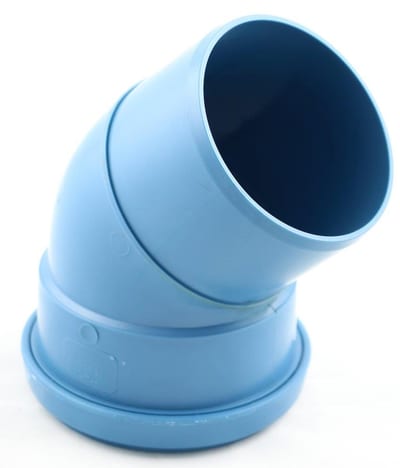

Bend PP - 110mm, 45°
995053116
Generic

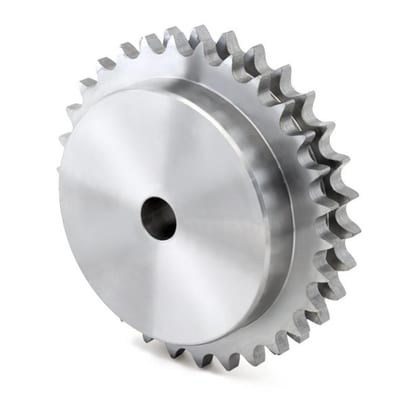

Duplex Hub sprocket 08B-2 steel - 1/2", 46PCS
PD09046
Generic

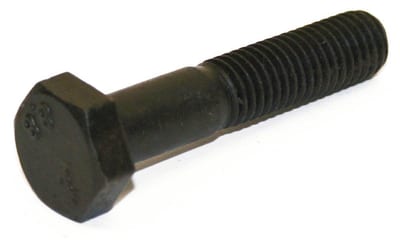

ISO 4014 Bolt Untreated 8.8 - M12 x 180 mm, 50 pcs
4014121801
Generic

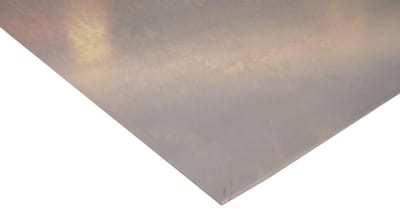

Sheet hot-dip galvanised - 3000mm, 1500mm, 4mm
