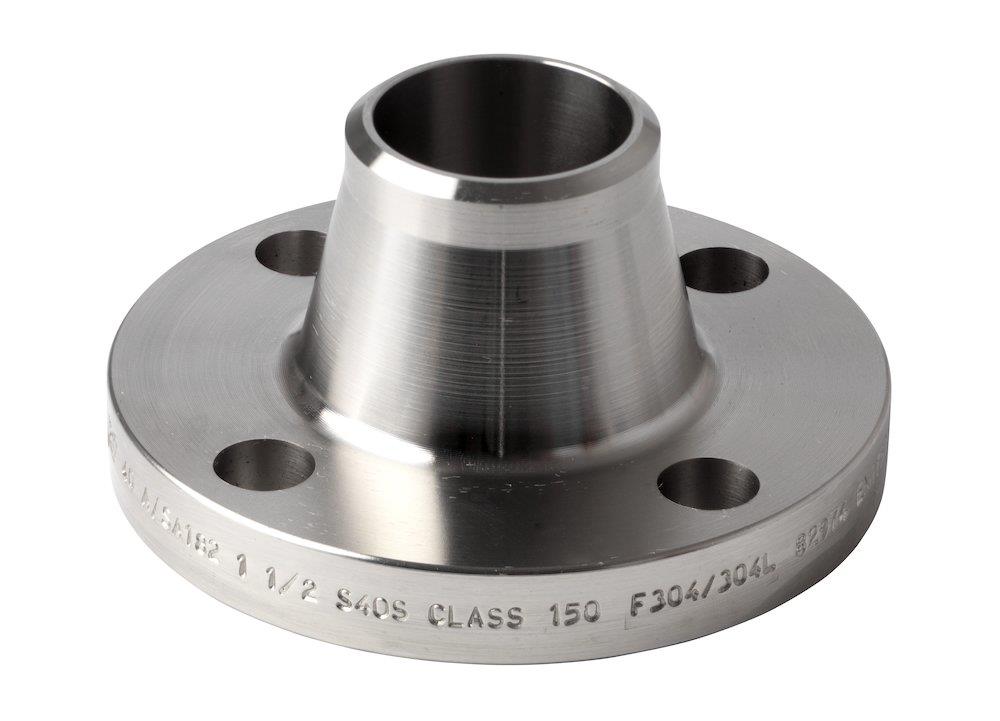

Weld flange with collar stainless - 24", 150LBS, 40S, 609,6mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar stainless. Welding flanges ASTM (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dimension 24", pressure ansi 150 Lbs, sch-class 40S, for pipes with outer diameter 609.6 mm. Supplied under manufacturer part number FW10039349, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges ASTM
- Product group
- Acid-resistant and Stainless fittings
- Dimension
- 24"
- Pressure ANSI
- 150 Lbs
- SCH-class
- 40S
- For pipes with outer diameter
- 609.6 mm
- Number of bolt holes
- 20 pcs
- Bolt hole diameter
- 34.9 mm
- Bolt circle diameter
- 749 mm
- Flange thickness
- 46.1 mm
- Diameter
- 815 mm
- Steel quality
- 304/304L
- Tolerance
- A-182 WN/RF , SF
- Material certificate
- EN 10204 3.1
- Weight
- 119 kg
- X dimension
- 663 mm
- R dimension
- 692.2 mm
- Y dimension
- 151 mm
- Rf dimension
- 2 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.3308 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- FW10039349
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN FW10039349
Product Documentation
