Weld flange with collar stainless - 150, 154mm, 16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar stainless. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 150, for pipes with outer diameter 154 mm, pressure pn 16 bar. Supplied under manufacturer part number GW12087426, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 150
- For pipes with outer diameter
- 154 mm
- Pressure PN
- 16 bar
- Number of bolt holes
- 8 pcs
- Bolt hole diameter
- 22 mm
- Bolt dimension
- 20 mm
- Bolt circle diameter
- 240 mm
- Flange thickness
- 22 mm
- Diameter
- 285 mm
- Material certificate
- EN 10204 3.1
- D1 dimension
- 212 mm
- N1 dimension
- 170 mm
- H2 dimension
- 55 mm
- H3 dimension
- 12 mm
- R1 dimension
- 10 mm
- S dimension
- 4.5 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 11B
- Weight
- 7.81 kg
- F1 dimension
- 3 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0217 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GW12087426
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW12087426
Product Documentation
More from Generic
Generic
01 Gamma seal nitrile/steel - 52mm, 72mm, 5.5mm
154255
Generic
Cold-formed hollow section square unpickled S235JRH - 80mm, 80mm, 2mm, 6M, 4.82KG/m
373925
Generic
Hygienic Clamp Ferrule BS 4825-3, Ø63.75 × 1.73 mm, 316L Satin
DC15255250
Generic
P265GH Weld End Socket - 33.7mm, 38mm, 2,6mm
014808034
Generic
O-ring FKM (Viton) - 6.1mm, Shore 75 ± 5, 1,60mm
183214
Generic

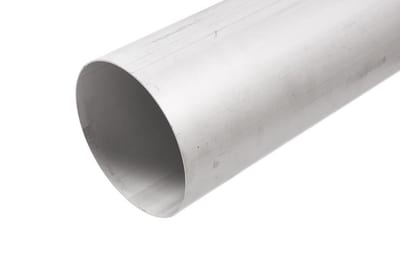

Steel pipe acid-resistant pickled EN 4404 - 85mm, 6M, 2mm, No
1608500200
Generic

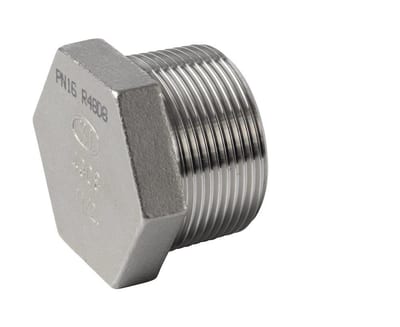

End Cap hexagon acid-resistant BSPT - 1/4"
TB50381855
Generic

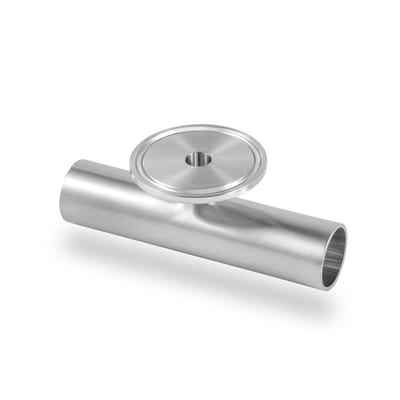

Pharma T-Piece short - 63.5mm, 63.5mm
PT21255253
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GW12087426?
- GW12087426 can be ordered from cballast.com: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this product?
- The manufacturer part number is GW12087426.
- What is the HS code for GW12087426?
- The customs tariff (HS) code for GW12087426 is 7307.21.
- Is a datasheet available for GW12087426?
- Yes — the GW12087426 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GW12087426?
- The minimum order quantity is 1.
- Is GW12087426 available?
- Yes — GW12087426 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for GW12087426?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
