Weld flange with collar acid-resistant - 80, 88,9mm, 16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar acid-resistant. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 80, for pipes with outer diameter 88.9 mm, pressure pn 16 bar. Supplied under manufacturer part number GW12285920, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 80 For pipes with outer diameter: 88.9 mm Pressure PN: 16 bar Number of bolt holes: 8 pcs Bolt hole diameter: 18 mm Bolt dimension: 16 mm Bolt circle diameter: 160 mm Flange thickness: 20 mm Diameter: 200 mm material certificate: EN 10204 3.1 D1 dimension: 138 mm N1 dimension: 105 mm H2 dimension: 50 mm H3 dimension: 10 mm R1 dimension: 6 mm S dimension: 3.2 mm Steel quality: 4571 Tolerance: EN-1092 type 11B Weight: 3.92 kg F1 dimension: 3 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0109 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GW12285920
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW12285920
Product Documentation
More from Generic
Generic

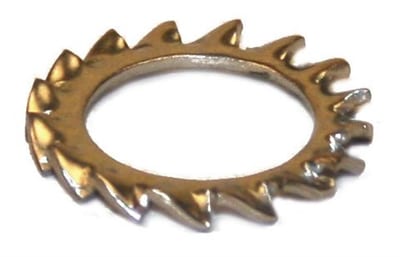

DIN 6798A Locking Washer stainless A2 - 10mm, 10.5mm, 18mm, 200PCS, 0.9mm
6798A104
Generic

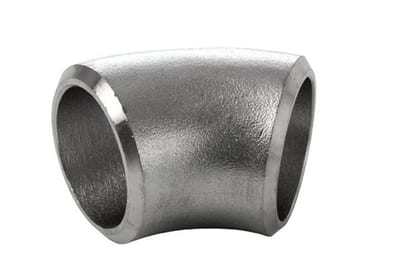

Weld Bend acid-resistant welded - 406.4mm, 9,53mm, 16", 40S, 45°
AB31229086
Generic

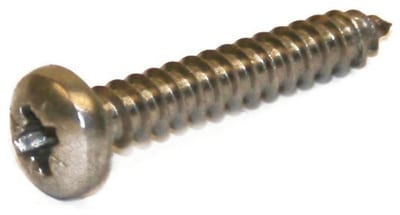

DIN 7981C Pan-head Pozidrive Sheet Metal Screw Acid-resistant A4 - 6.3x38mm
79810630386
Generic

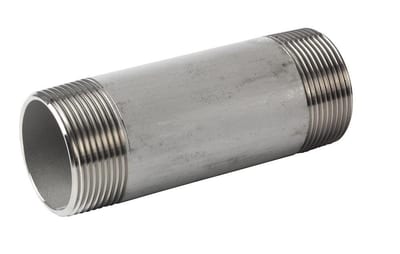

Nipple Pipe acid-resistant BSPT - 300mm, 1/4", 13.5mm
TB07211545
Generic

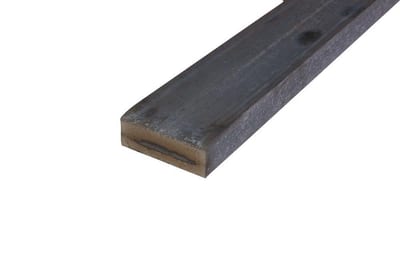

Flat steel S355J2 - 50mm, 3.206KG/m, 8mm, 6.1M
529859
Generic

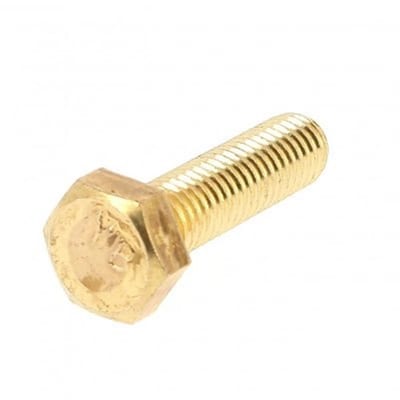

DIN 933 Set Screw brass - 10, 100PCS, 20mm
933100207
Generic

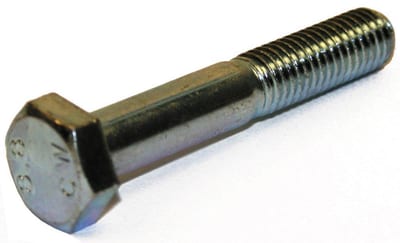

DIN 931 Hex Head Bolt M10 x 45 mm 10.9 Electro-Galvanised (FZB) 100 pcs
10931100452
Generic

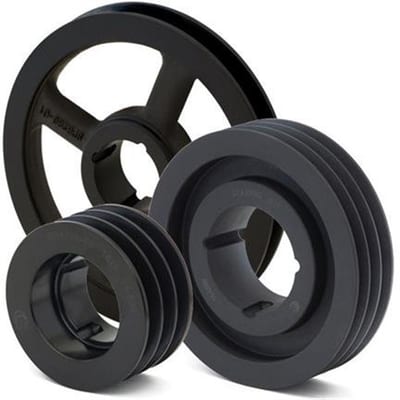

SPB V-belt pulley - 190mm, 3PCS, 2517
