Weld flange with collar acid-resistant - 65, 76,1mm, 16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar acid-resistant. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 65, for pipes with outer diameter 76.1 mm, pressure pn 16 bar. Supplied under manufacturer part number GW12255599, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 65 For pipes with outer diameter: 76.1 mm Pressure PN: 16 bar Number of bolt holes: 4 pcs Bolt hole diameter: 18 mm Bolt dimension: 16 mm Bolt circle diameter: 145 mm Flange thickness: 18 mm Diameter: 185 mm material certificate: EN 10204 3.1 D1 dimension: 122 mm N1 dimension: 92 mm H2 dimension: 45 mm H3 dimension: 10 mm R1 dimension: 6 mm S dimension: 2.9 mm Steel quality: 4404 Tolerance: EN-1092 type 11B Weight: 3.03 kg F1 dimension: 3 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0088 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GW12255599 VVS number: 032172076
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW12255599
- VVS 032172076
Product Documentation
More from Generic
Generic
Pharma Reduction concentric - 50.8mm, 101.6mm
PR22254866
Generic
ISO 4017 / DIN 933 Fully Threaded Set Screw Untreated 8.8 - M6, 25 mm, 500 pcs
4017060251
Generic
4-Finger Knob stainless - 12mm, 40mm, 60mm
2302066593
Generic

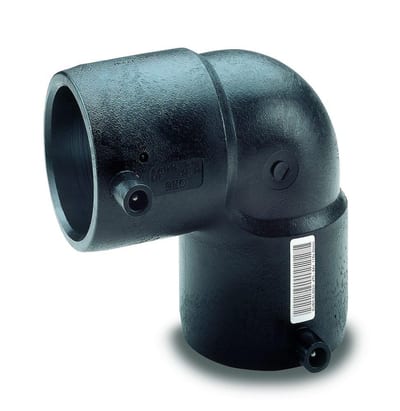

Eurostandard Electrical Elbow - 315mm, 315mm, 16bar, 90°
2111160315
Generic

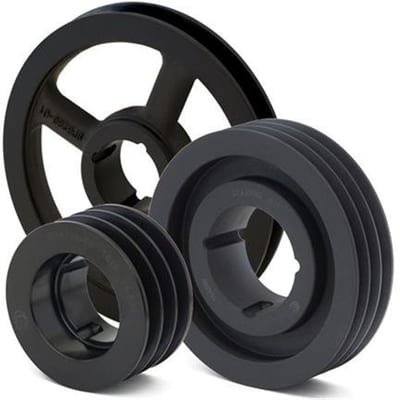

SPC V-belt pulley - 200mm, 2PCS, 2517
