Weld flange with collar acid-resistant - 300, 323,9mm, 10bar - 792051
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar acid-resistant. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 300, for pipes with outer diameter 323.9 mm, pressure pn 10 bar. Supplied under manufacturer part number GW13258750, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 300 For pipes with outer diameter: 323.9 mm Pressure PN: 10 bar Number of bolt holes: 12 pcs Bolt hole diameter: 22 mm Bolt dimension: 20 mm Bolt circle diameter: 400 mm Flange thickness: 26 mm Diameter: 445 mm material certificate: EN 10204 3.1 D1 dimension: 370 mm N1 dimension: 342 mm H2 dimension: 68 mm H3 dimension: 16 mm R1 dimension: 12 mm S dimension: 7.1 mm Steel quality: 4404 Tolerance: EN-1092 type 11B Weight: 18.3 kg F1 dimension: 4 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0495 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GW13258750
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW13258750
Product Documentation
More from Generic
Generic

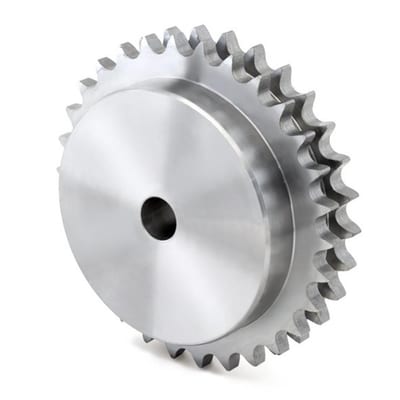

Duplex Hub sprocket 08B-2 steel - 1/2", 52PCS
PD09052
Generic

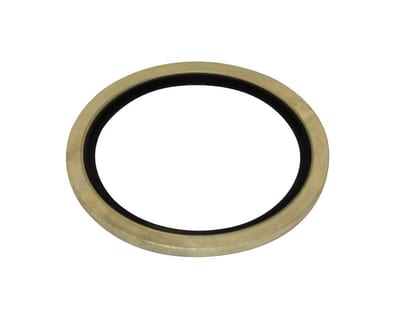

Bonded seal BSCS Three-ring self-centring nickel-plated steel - 15.9mm, 10.37mm, 2,1mm, 1/8"
314191
Generic

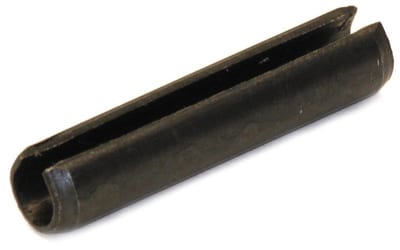

DIN 1481 Slotted Spring Pin 1.5 x 6 mm Untreated
14810150061
Generic

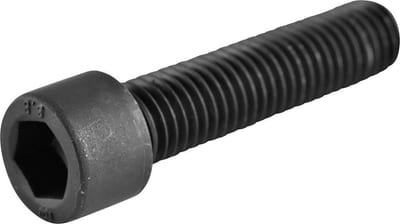

DIN 912 Allen Screw cylindrical head black 12.9 - M30, 190mm, 1PCS, 72mm
12912301901
Generic
O-ring NBR (nitrile) - 96mm, Shore 70, 3,00mm
159154
Generic
DIN 933 Set Screw acid-resistant A4 KL. 70 - M14, 80mm, 50PCS
933140806
Generic
ISO 4014 / DIN 931 Bolt acid-resistant A4 KL. 70 - 55mm, 200PCS, M8, 22mm
931080556
Generic
DIN 7985 Machine Screw Pozidriv pan-head acid-resistant A4 - 4mm, 6mm
79850400066
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GW13258750?
- GW13258750 can be ordered from cballast.com: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this product?
- The manufacturer part number is GW13258750.
- What is the HS code for GW13258750?
- The customs tariff (HS) code for GW13258750 is 7307.21.
- Is a datasheet available for GW13258750?
- Yes — the GW13258750 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GW13258750?
- The minimum order quantity is 1.
- Is GW13258750 available?
- Yes — GW13258750 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for GW13258750?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
