Weld flange with collar acid-resistant - 250, 273mm, 25bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar acid-resistant. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 250, for pipes with outer diameter 273 mm, pressure pn 25 bar. Supplied under manufacturer part number GW16258476, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 250 For pipes with outer diameter: 273 mm Pressure PN: 25 bar Number of bolt holes: 12 pcs Bolt hole diameter: 30 mm Bolt dimension: 27 mm Bolt circle diameter: 370 mm Flange thickness: 32 mm Diameter: 425 mm material certificate: EN 10204 3.1 D1 dimension: 335 mm N1 dimension: 298 mm H2 dimension: 88 mm H3 dimension: 18 mm R1 dimension: 12 mm S dimension: 7.1 mm Steel quality: 4404 Tolerance: EN-1092 type 11B Weight: 24.3 kg F1 dimension: 3 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0676 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GW16258476
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW16258476
Product Documentation
More from Generic
Generic
Aluminum Tube aluminium square EN AW-6060 T6 - 120mm, 40mm, 4mm, 6M, 3.28KG/m
1772946
Generic

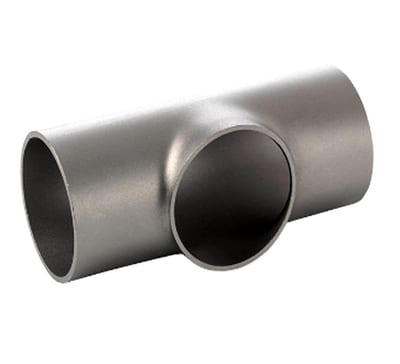

T-Piece short branch stainless welded flared - 60.3mm, 3mm, 127mm
ET10085115
Generic
O-ring NBR (nitrile) - 29.75mm, Shore 90, 3,53mm
313910
Generic

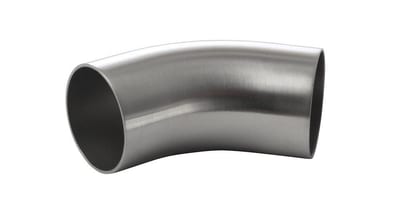

Hygienic Weld Bend 45°, Ø41 × 1.5 mm, R60, Short leg, 316L Satin
DB41344021
Generic

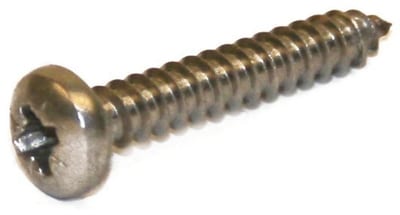

DIN 7981C Sheet Metal Screw pan-head Pozidrive stainless A2 - 5.5x32mm
79810550324
Generic

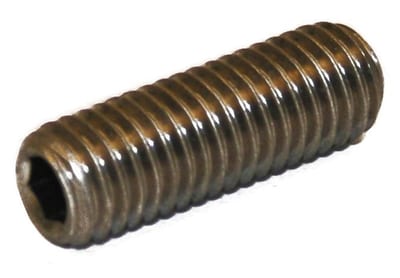

DIN 916 Grub Screw with cup point acid-resistant A4 - M8, 40mm, 200PCS
916080406
Generic

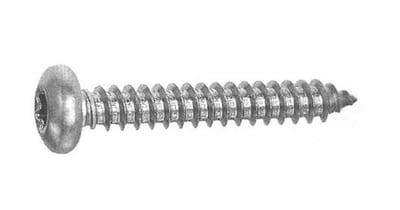

DIN 7981C Sheet Metal Screw pan-head Torx stainless A2 - 4.8x19mm
7981T0480194
Generic

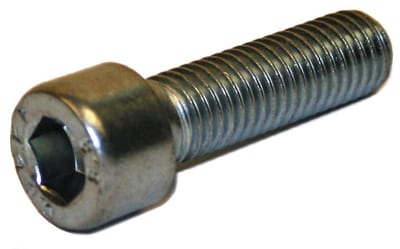

DIN 912 Socket Head Cap Screw 8.8, M6x75, Electro-Galvanised FZB, 200 pcs
88912060752
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GW16258476?
- GW16258476 can be ordered from cballast.com: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this product?
- The manufacturer part number is GW16258476.
- What is the HS code for GW16258476?
- The customs tariff (HS) code for GW16258476 is 7307.21.
- Is a datasheet available for GW16258476?
- Yes — the GW16258476 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GW16258476?
- The minimum order quantity is 1.
- Is GW16258476 available?
- Yes — GW16258476 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for GW16258476?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
