Weld flange with collar acid-resistant - 150, 154mm, 16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar acid-resistant. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 150, for pipes with outer diameter 154 mm, pressure pn 16 bar. Supplied under manufacturer part number GW12257426, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 150 For pipes with outer diameter: 154 mm Pressure PN: 16 bar Number of bolt holes: 8 pcs Bolt hole diameter: 22 mm Bolt dimension: 20 mm Bolt circle diameter: 240 mm Flange thickness: 22 mm Diameter: 285 mm material certificate: EN 10204 3.1 D1 dimension: 212 mm N1 dimension: 170 mm H2 dimension: 55 mm H3 dimension: 12 mm R1 dimension: 10 mm S dimension: 4.5 mm Steel quality: 4404 Tolerance: EN-1092 type 11B Weight: 7.81 kg F1 dimension: 3 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0250 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GW12257426
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW12257426
Product Documentation
More from Generic
Generic
DIN 912 Allen Screw cylindrical stainless A2 - M6, 20mm, 500PCS, 20mm
912060204
Generic
Hot-rolled plate acid-resistant EN 1.4404 1D - 2500mm, 1250mm, 6mm, 150kg
8470612250
Generic
Bright steel round centreless-ground C45E +SL H6 - 100mm, 6.1M
69963
Generic
ISO 4017 / DIN 933 Set Screw acid-resistant A4 KL. 70 - M4, 40mm, 200PCS
933040406
Generic
Profile aluminium angle EN AW-6082 T6 - 50mm, 50mm, 6M, 1.99KG/m, 8mm
1002409
Generic

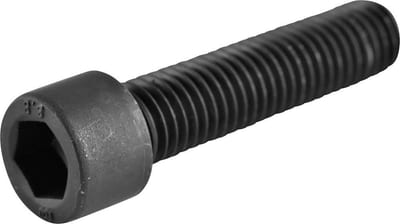

DIN 912 Allen Screw cylindrical black 12.9 - M5, 75mm, 200PCS, 22mm
12912050751
Generic

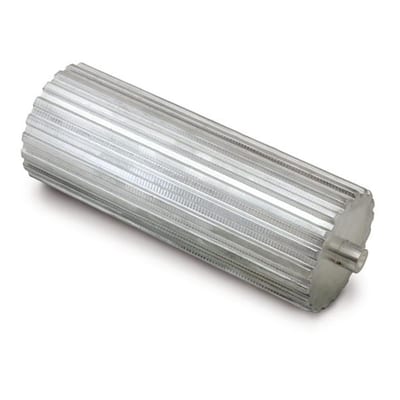

Timing belt bar T10 - 13PCS, 140mm, 10
BT10013
Generic

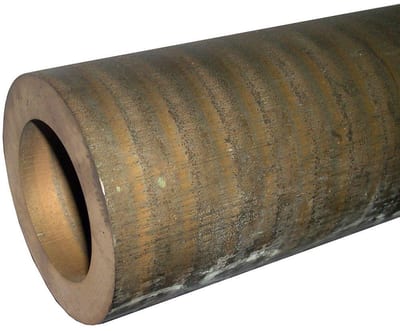

Bearing Bronze round CC493K - 262mm, 188mm, 500mm
1161773
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GW12257426?
- GW12257426 can be ordered from cballast.com: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this product?
- The manufacturer part number is GW12257426.
- What is the HS code for GW12257426?
- The customs tariff (HS) code for GW12257426 is 7307.21.
- Is a datasheet available for GW12257426?
- Yes — the GW12257426 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GW12257426?
- The minimum order quantity is 1.
- Is GW12257426 available?
- Yes — GW12257426 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for GW12257426?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
