Weld flange with collar acid-resistant - 125, 139,7mm, 16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar acid-resistant. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 125, for pipes with outer diameter 139.7 mm, pressure pn 16 bar. Supplied under manufacturer part number GW12257230, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 125 For pipes with outer diameter: 139.7 mm Pressure PN: 16 bar Number of bolt holes: 8 pcs Bolt hole diameter: 18 mm Bolt dimension: 16 mm Bolt circle diameter: 210 mm Flange thickness: 22 mm Diameter: 250 mm material certificate: EN 10204 3.1 D1 dimension: 188 mm N1 dimension: 156 mm H2 dimension: 55 mm H3 dimension: 12 mm R1 dimension: 8 mm S dimension: 4 mm Steel quality: 4404 Tolerance: EN-1092 type 11B Weight: 6.3 kg F1 dimension: 3 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0179 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GW12257230 VVS number: 032172140
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW12257230
- VVS 032172140
Product Documentation
More from Generic
Generic
DIN 931 Bolt Grade 10.9 Electro-Galvanised FZB - M14, 50mm, 50PCS, 34mm
10931140502
Generic
Cone stainless welded concentric - 114.3mm, 88.9mm, 2mm, 76.2mm
ER10085339
Generic
Automatic steel stainless bright-drawn EN 4305 H9 - 17mm, 3M, 1.78KG/m
5200170000
Generic
Aluminum Plate Aluminium EN AW-1050A H14 - 2500mm, 5.9kg, 1250mm, 0,7mm
1288687
Generic
Press cap acid-resistant Smooth PTFE hoses - 3/4", 25.2mm, 30mm
FRTE12
Generic
Compressed steel S355J2C +C IM - 50mm, 15.4KG/m, 3.1M
348414
Generic

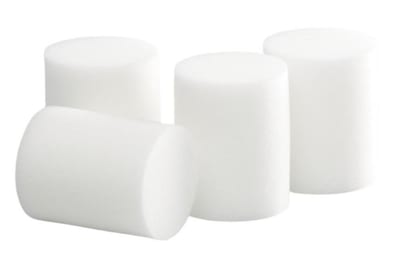

Ultra clean Cleaning Plug pipe/hose - 2", 65
