Weld flange with collar acid-resistant - 1", 150LBS, 80S, 33,4mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar acid-resistant. Welding flanges ASTM (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dimension 1", pressure ansi 150 Lbs, sch-class 80S, for pipes with outer diameter 33.4 mm. Supplied under manufacturer part number FW10223620, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges ASTM Product group: Acid-resistant and Stainless fittings Dimension: 1" Pressure ANSI: 150 Lbs SCH-class: 80S For pipes with outer diameter: 33.4 mm Number of bolt holes: 4 pcs Bolt hole diameter: 15.9 mm Bolt circle diameter: 79 mm Flange thickness: 12.7 mm Diameter: 110 mm Steel quality: 316/316L Tolerance: A-182 WN/RF , SF material certificate: EN 10204 3.1 Weight: 1.05 kg X dimension: 49 mm R dimension: 50.8 mm Y dimension: 54 mm Rf dimension: 2 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0029 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: FW10223620
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN FW10223620
Product Documentation
More from Generic
Generic
PH Nipple acid-resistant BSPP nipple - 3/8", 3/8"
1050510-06-06
Generic
ISO 4014 / DIN 931 Hex Bolt Untreated 8.8 - M24 x 380 mm, 10 pcs
4014243801
Generic
DIN 912 Allen Screw cylindrical black 12.9 - M4, 20mm, 500PCS
12912040201
Generic
SPC V-belt pulley - 355mm, 5PCS, 3535
CT03555
Generic
DIN 912 Allen Screw cylindrical black 12.9 - M8, 180mm, 100PCS, 28mm
12912081801
Generic
Type C Plastic Plug conical yellow - 146.8mm, 159.5mm, 33mm
C 1490
Generic

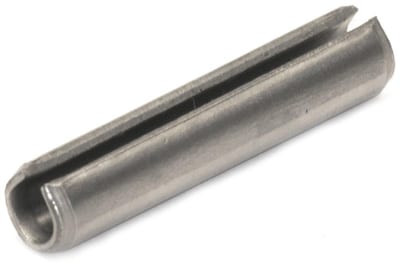

DIN 1481 Spring Pin stainless A1 - 2.5mm, 4mm
14810250044
Generic

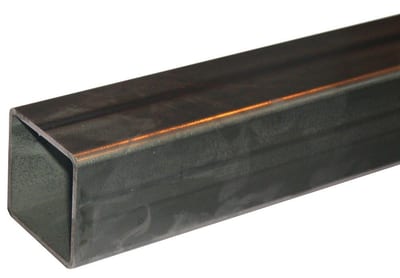

Cold-formed hollow section square pickled S235JRH - 70mm, 70mm, 2mm, 6M, 4.27KG/m
