Weld flange with collar acid-resistant - 1 1/2", 300LBS, 80S, 48,3mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar acid-resistant. Welding flanges ASTM (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dimension 1 1/2", pressure ansi 300 Lbs, sch-class 80S, for pipes with outer diameter 48.3 mm. Supplied under manufacturer part number FW15224530, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges ASTM Product group: Acid-resistant and Stainless fittings Dimension: 1 1/2" Pressure ANSI: 300 Lbs SCH-class: 80S For pipes with outer diameter: 48.3 mm Number of bolt holes: 4 pcs Bolt hole diameter: 22.2 mm Bolt circle diameter: 114 mm Flange thickness: 19.1 mm Diameter: 155 mm Steel quality: 316/316L Tolerance: A-182 WN/RF , SF material certificate: EN 10204 3.1 Weight: 3 kg X dimension: 70 mm R dimension: 73 mm Y dimension: 67 mm Rf dimension: 2 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0083 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: FW15224530
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN FW15224530
Product Documentation
More from Generic
Generic
Hygienic Weld Bend 90°, Ø63.5 × 1.6 mm, R95.3, Long leg, 316L Satin
DB77345252
Generic
ISO 4014 / DIN 931 Bolt Hot-dip galvanised FZV 8.8 - M20, 500mm, 25PCS
4014205003
Generic
Round steel acid-resistant bright-drawn EN 4404 H9 - 25mm, 3M, 3.85KG/m
5100250003
Generic
Hygienic Clamp Gasket ISO 1127, K50.5, PTFE (Teflon®)
DC43833535
Generic
Weld Bend 1.5D acid-resistant welded - 25mm, 1,5mm, 4404/316L, 38mm, 90°
EB15342813
Generic
ISO 4014 / DIN 931 Bolt grade 10.9 electro-galvanised FZB - M16, 120mm, 25PCS, 38mm
10931161202
Generic
CN TW Crowning complete coupling acid-resistant - 4", 100
4MKS
Generic

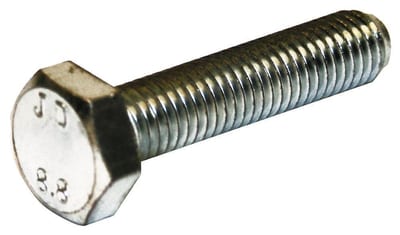

ISO 4017 / DIN 933 Set Screw grade 8.8 electro-galvanised FZB - M3, 8mm, 500PCS
4017030082
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy FW15224530?
- FW15224530 can be ordered from cballast.com: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this product?
- The manufacturer part number is FW15224530.
- What is the HS code for FW15224530?
- The customs tariff (HS) code for FW15224530 is 7307.21.
- Is a datasheet available for FW15224530?
- Yes — the FW15224530 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for FW15224530?
- The minimum order quantity is 1.
- Is FW15224530 available?
- Yes — FW15224530 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for FW15224530?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
