Weld flange with collar acid-resistant - 1 1/2", 150LBS, 40S, 48,3mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar acid-resistant. Welding flanges ASTM (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dimension 1 1/2", pressure ansi 150 Lbs, sch-class 40S, for pipes with outer diameter 48.3 mm. Supplied under manufacturer part number FW10224500, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges ASTM Product group: Acid-resistant and Stainless fittings Dimension: 1 1/2" Pressure ANSI: 150 Lbs SCH-class: 40S For pipes with outer diameter: 48.3 mm Number of bolt holes: 4 pcs Bolt hole diameter: 15.9 mm Bolt circle diameter: 98 mm Flange thickness: 15.9 mm Diameter: 125 mm Steel quality: 316/316L Tolerance: A-182 WN/RF , SF material certificate: EN 10204 3.1 Weight: 1.77 kg X dimension: 65 mm R dimension: 73 mm Y dimension: 60 mm Rf dimension: 2 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0051 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: FW10224500
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN FW10224500
Product Documentation
More from Generic
Generic
Nipple Socket acid-resistant BSPP/BSPT - 1 1/2", 3", coupling, Nipple, BSPP, BSPT
TB60384598
Generic
Cold-formed pipe profile Square S355J2H - 180mm, 180mm, 8mm, 12M, 41.48KG/m
26263
Generic
Hot-rolled plate acid-resistant EN 1.4404 1D - 2500mm, 1250mm, 10mm, 250kg
8471012250
Generic
P235GH Weld Bend - 168.3mm, 4,5mm, 90° 587725
014008168
Generic
Cold-formed hollow section square hot-dip galvanised S235JR - 80mm, 80mm, 2mm, 6M, 5.29KG/m
371387
Generic
Type C Vibration Damper internal/internal - 40mm, 30mm, 8mm 5701954240836
21A146-18631
Generic

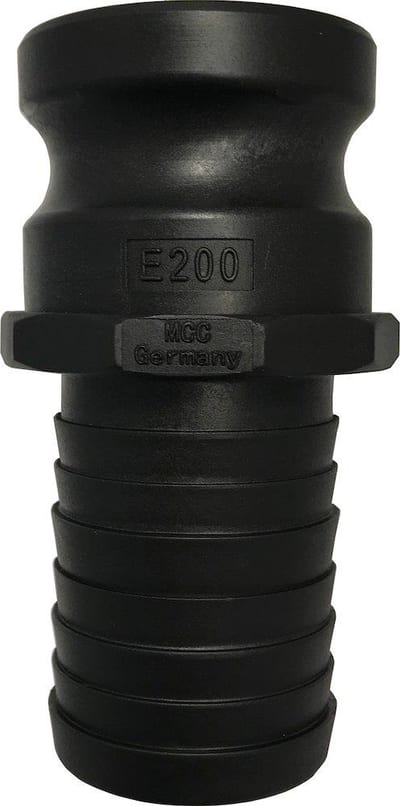

E Cam coupling PP Hose Spigot han - 25mm, 1"
E100PP
Generic

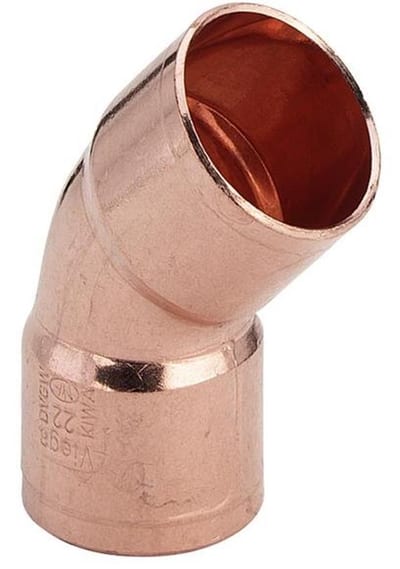

Solder Bend - 15mm, 45°
100483
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy FW10224500?
- FW10224500 can be ordered from cballast.com: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this product?
- The manufacturer part number is FW10224500.
- What is the HS code for FW10224500?
- The customs tariff (HS) code for FW10224500 is 7307.21.
- Is a datasheet available for FW10224500?
- Yes — the FW10224500 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for FW10224500?
- The minimum order quantity is 1.
- Is FW10224500 available?
- Yes — FW10224500 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for FW10224500?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
