Weld flange flat stainless - 200, 219,1mm, 10bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange flat stainless. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 200, for pipes with outer diameter 219.1 mm, pressure pn 10 bar. Supplied under manufacturer part number GS13088150, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 200
- For pipes with outer diameter
- 219.1 mm
- Pressure PN
- 10 bar
- Number of bolt holes
- 8 pcs
- Bolt hole diameter
- 22 mm
- Bolt dimension
- 20 mm
- Bolt circle diameter
- 295 mm
- Flange thickness
- 24 mm
- Diameter
- 340 mm
- Material certificate
- EN 10204 3.1
- Inner diameter
- 221.5 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 01A
- Weight
- 9.27 kg
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0258 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GS13088150
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GS13088150
Product Documentation
More from Generic
Generic
Bonded seal BSCS Three-ring self-centring nickel-plated steel - 10mm, 5.7mm, 1mm
125701
Generic
Profile aluminium flat EN AW-6060 T6 - 6M, 45mm, 10mm, 1.24KG/m
1776061
Generic
O-ring NBR (nitrile) - 30mm, Shore 70, 4,50mm
171914
Generic

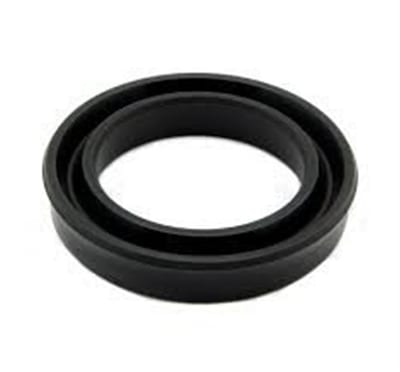

Nutring N6 U-seal CH21 Nitrile - 22mm, 16mm, 5mm
115642
Generic

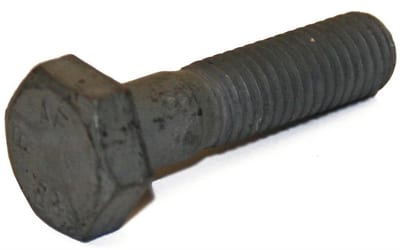

ISO 4014 Bolt Hot-dip galvanised FZV 8.8 - M10, 80mm, 50PCS, 26mm
4014100803
Generic

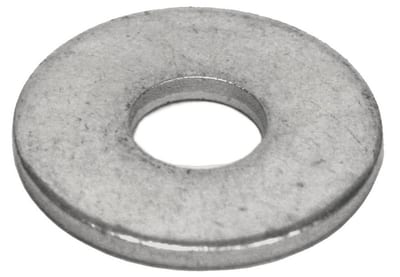

ART 9021T Fender Washer zinc-plated electro-galvanised FZB - 8mm, 25mm OD, 200 pcs
9021080252
Generic
O-ring NBR (nitrile) - 24mm, Shore 70, 5,50mm
288468
Generic

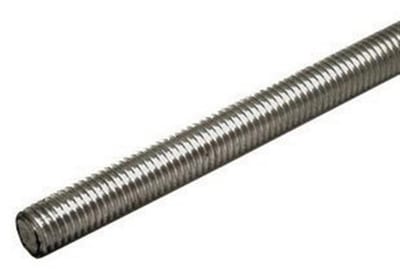

DIN 975 Threaded Rod 8.8 hot-dip galvanised FZV - M20, 1000mm, 10PCS
