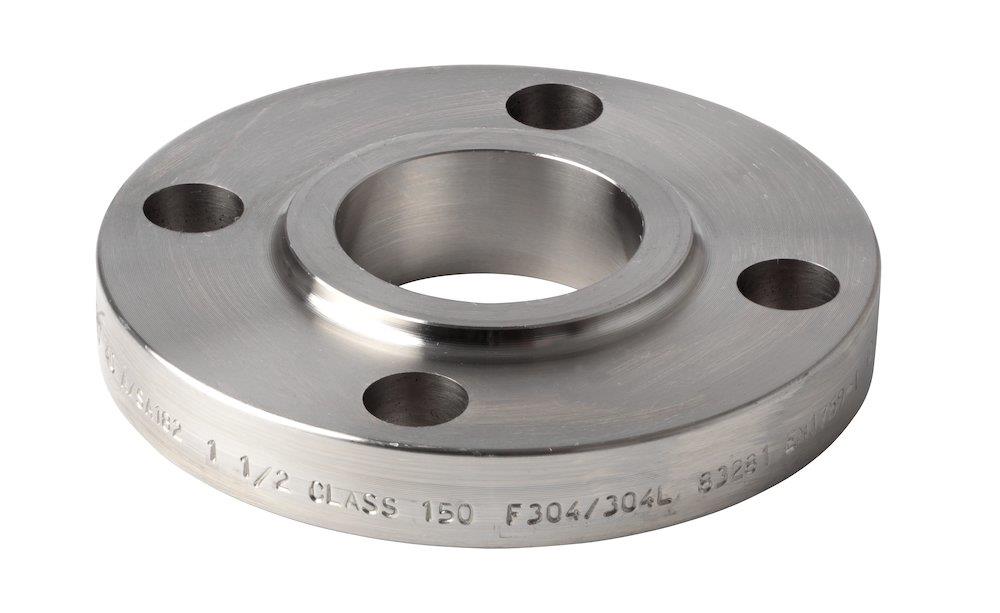

Weld flange flat stainless - 16", 150LBS, 406,4mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange flat stainless. Welding flanges ASTM (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dimension 16", pressure ansi 150 Lbs, for pipes with outer diameter 406.4 mm. Supplied under manufacturer part number FS10039086, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges ASTM
- Product group
- Acid-resistant and Stainless fittings
- Dimension
- 16"
- Pressure ANSI
- 150 Lbs
- For pipes with outer diameter
- 406.4 mm
- Number of bolt holes
- 16 pcs
- Bolt hole diameter
- 28.6 mm
- Bolt circle diameter
- 539 mm
- Flange thickness
- 35 mm
- Diameter
- 595 mm
- Steel quality
- 304/304L
- Tolerance
- A-182 SO/RF , SF
- Material certificate
- EN 10204 3.1
- Weight
- 44.85 kg
- X dimension
- 457 mm
- R dimension
- 469.9 mm
- Y dimension
- 62 mm
- Rf dimension
- 2 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.1247 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- FS10039086
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN FS10039086
Product Documentation
