Weld flange flat stainless - 15, 21,3mm, 40bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange flat stainless. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 15, for pipes with outer diameter 21.3 mm, pressure pn 40 bar. Supplied under manufacturer part number GS11082550, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 15
- For pipes with outer diameter
- 21.3 mm
- Pressure PN
- 40 bar
- Number of bolt holes
- 4 pcs
- Bolt hole diameter
- 14 mm
- Bolt dimension
- 12 mm
- Bolt circle diameter
- 65 mm
- Flange thickness
- 14 mm
- Diameter
- 95 mm
- Material certificate
- EN 10204 3.1
- Inner diameter
- 22 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 01A
- Weight
- 0.67 kg
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0019 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GS11082550
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GS11082550
Product Documentation
More from Generic
Generic
DIN 912 Allen screw cylindrical black 12.9 - M14 x 80 mm, 50 pcs
12912140801
Generic
Round steel S355J2 - 65mm, 6M, 26.535KG/m
90545
Generic
DIN 916 Grub Screw with cup point stainless A2 - M3, 10mm, 500PCS
916030104
Generic
Weld Bend 1.5D stainless welded - 35mm, 2mm, 4307/304L, 52.5mm, 90°
EB15103717
Generic
Blind flange acid-resistant - 3/4", 150LBS
FB10223040
Generic
DIN 931 Hex Head Bolt Untreated 8.8 - M10 x 100 mm, 50 pcs
931101001
Generic
Universal steel S235JR/S275JR - 250mm, 15mm, 6.1M, 30.711KG/m
348061
Generic

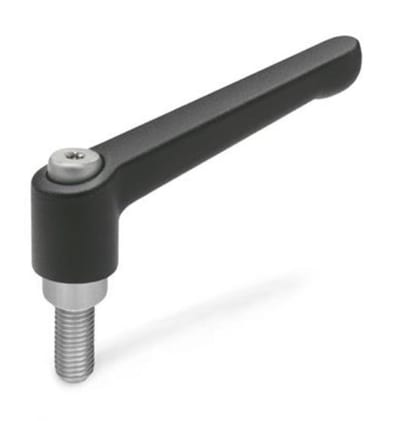

Clamping Lever with stud stainless - 5mm, 50mm
