Weld flange flat stainless - 125, 139,7mm, 16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange flat stainless. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 125, for pipes with outer diameter 139.7 mm, pressure pn 16 bar. Supplied under manufacturer part number GS12087230, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 125
- For pipes with outer diameter
- 139.7 mm
- Pressure PN
- 16 bar
- Number of bolt holes
- 8 pcs
- Bolt hole diameter
- 18 mm
- Bolt dimension
- 16 mm
- Bolt circle diameter
- 210 mm
- Flange thickness
- 22 mm
- Diameter
- 250 mm
- Material certificate
- EN 10204 3.1
- Inner diameter
- 141.5 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 01A
- Weight
- 5.41 kg
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0153 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GS12087230
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GS12087230
Product Documentation
More from Generic
Generic
DIN 931 Hex Head Bolt Untreated 8.8 - M22, 100 mm, 10 pcs, 50 mm Thread
931221001
Generic
DIN 94 Split Pin Electro-Galvanised FZB - 5 mm, 20 mm
940500202
Generic
Hose nozzle acid-resistant nipple BSPT - 8mm, 3/8"
TB59381975
Generic
DIN 440 Clamp Plate round hot-dip galvanized round hot-dip galvanised FZV - 12mm, 14mm, 40mm, 4mm
44012403
Generic
ISO 4014 Hex Head Bolt Grade 8.8 Electro-Galvanised FZB - M22, 80 mm, 25 pcs, 50 mm Thread
4014220802
Generic

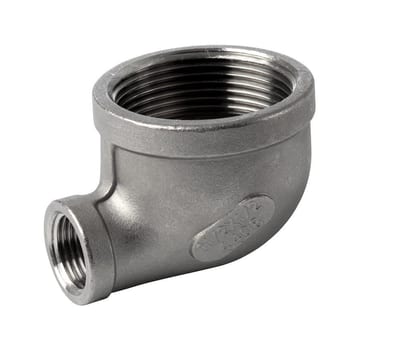

Angle acid-resistant coupling/coupling - 2", 1 1/4", 90°
TB21383686
Generic

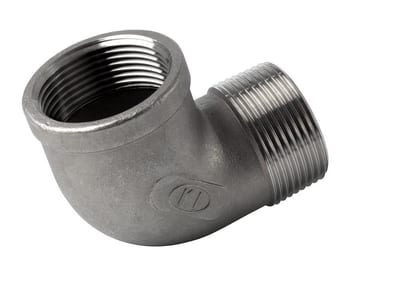

Angle stainless socket/nipple - 1 1/2", 1 1/2", 90°
