Weld flange flat acid-resistant - 600, 609,6mm, 16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange flat acid-resistant. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 600, for pipes with outer diameter 609.6 mm, pressure pn 16 bar. Supplied under manufacturer part number GS14259346, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 600 For pipes with outer diameter: 609.6 mm Pressure PN: 16 bar Number of bolt holes: 20 pcs Bolt hole diameter: 36 mm Bolt dimension: 33 mm Bolt circle diameter: 770 mm Flange thickness: 55 mm Diameter: 840 mm material certificate: EN 10204 3.1 Inner diameter: 616.5 mm Steel quality: 4404 Tolerance: EN-1092 type 01A Weight: 96.1 kg REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.2672 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GS14259346
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GS14259346
Product Documentation
More from Generic
Generic
Profile aluminium angle EN AW-6060 T6 - 100mm, 100mm, 10mm, 6M, 5.13KG/m
1001495
Generic
PH DKOL Crimp Fitting metric acid-resistant - 3/8", 12mm, Light, 45°, Parker 301SN, Parker 421SN, Parker 462, Parker 462ST, Parker 492
DKOL-12-45°-DN 10
Generic
ISO 4014 / DIN 931 Hex Head Bolt 8.8 Electro-galvanised M30 x 100 mm - 10 pcs
4014301002
Generic
Profile aluminium angle EN AW-6060 T6 - 100mm, 100mm, 5mm, 6M, 2.68KG/m
1001546
Generic
DIN 915 Grub Screw with tap 45H black - M20, 20mm, 25PCS
915200201
Generic

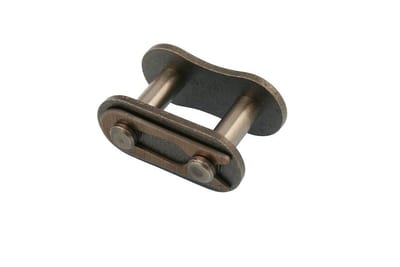

RKK simplex Industrial connecting link straight steel 12B-1 - 3/4", 19.05mm
12B-1RKK RJ
Generic

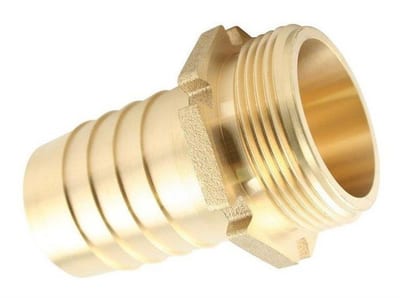

V SK Hose nozzle brass nipple BSPP - 19mm, 3/4"
