Weld flange flat acid-resistant - 100, 101,6mm, 16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange flat acid-resistant. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 100, for pipes with outer diameter 101.6 mm, pressure pn 16 bar. Supplied under manufacturer part number GS12256170, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO Product group: Acid-resistant and Stainless fittings DN dimension: 100 For pipes with outer diameter: 101.6 mm Pressure PN: 16 bar Number of bolt holes: 8 pcs Bolt hole diameter: 18 mm Bolt dimension: 16 mm Bolt circle diameter: 180 mm Flange thickness: 22 mm Diameter: 220 mm material certificate: EN 10204 3.1 Inner diameter: 103.3 mm Steel quality: 4404 Tolerance: EN-1092 type 01A Weight: 5 kg REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0139 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: GS12256170
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GS12256170
Product Documentation
More from Generic
Generic
Flat steel acid-resistant rolled/pickled EN 4404 - 30mm, 10mm, 6M, 2.36KG/m
7601003000
Generic
ISO 4017 / DIN 933 Set Screw Hot-dip galvanised FZV 8.8 - M30, 50mm, 10PCS
4017300503
Generic
Blind flange acid-resistant - 150, 16bar
GB12257716
Generic

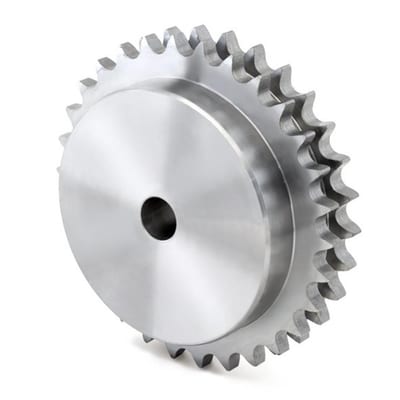

Duplex Hub sprocket 10B-2 steel - 5/8", 23PCS
PD10023
Generic

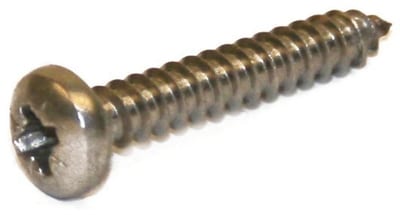

DIN 7981C Sheet Metal Screw Pan-Head Pozidriv Electro-Galvanised 3.9 x 9.5 mm
79810390092
Generic

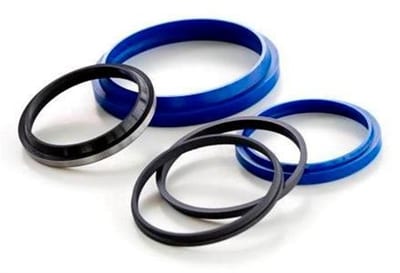

AM Scraper ring CH07 NBR/steel - 16mm, 10mm, 3/4,5mm
240989
Generic

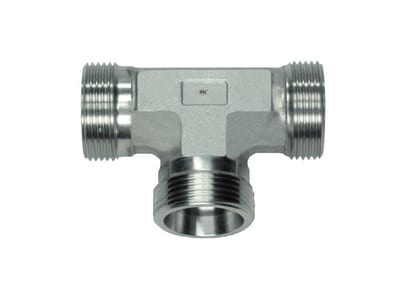

PH TV Union tee acid-resistant light - 18mm, 400bar
TV-L-18-OMD
Generic

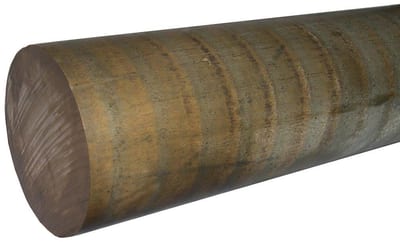

Bearing Bronze round solid CC493K - 13mm, 3100mm, 1.1KG/m
