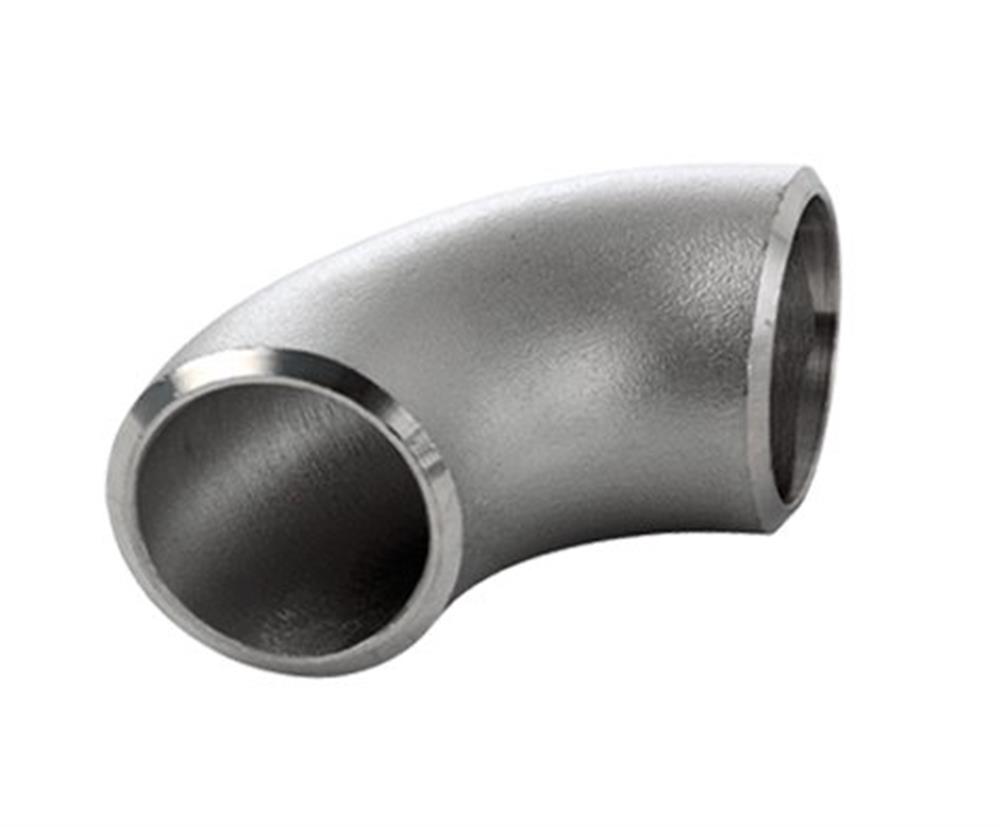

Weld Bend stainless welded - 406.4mm, 4,78mm, 16", 10S, 90°
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld Bend stainless welded. Weld bends ASTM (Technique / Acid-resistant and Stainless fittings / Welding fittings). Principal data: outer diameter 406.4 mm, thickness 4.78 mm, dimension 16", sch-class 10S. Supplied under manufacturer part number AB36039054, HS code 7307.23, country of origin Taiwan.
Technical Specifications
- Product type
- Weld bends ASTM
- Product group
- Acid-resistant and Stainless fittings
- Outer diameter
- 406.4 mm
- Thickness
- 4.78 mm
- Dimension
- 16"
- SCH-class
- 10S
- Angle
- 90°
- Material certificate
- EN 10204 3.1
- Outer diameter INCH-GAS-SCH
- 16” SCH 10S
- Steel quality
- 304/304L
- Weight
- 48 kg
- Tolerance
- ASTM A-403 WP-WX 100pctXRAY
- Bending radius
- 610 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.1334 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- Taiwan
- Customs tariff code (EU CN)
- 73072310
- HS code
- 7307.23
- Manufacturer part number
- AB36039054
Standards & Compliance
- HS Code
- 7307.23
Cross References
- MPN AB36039054
Product Documentation
