Weidmüller

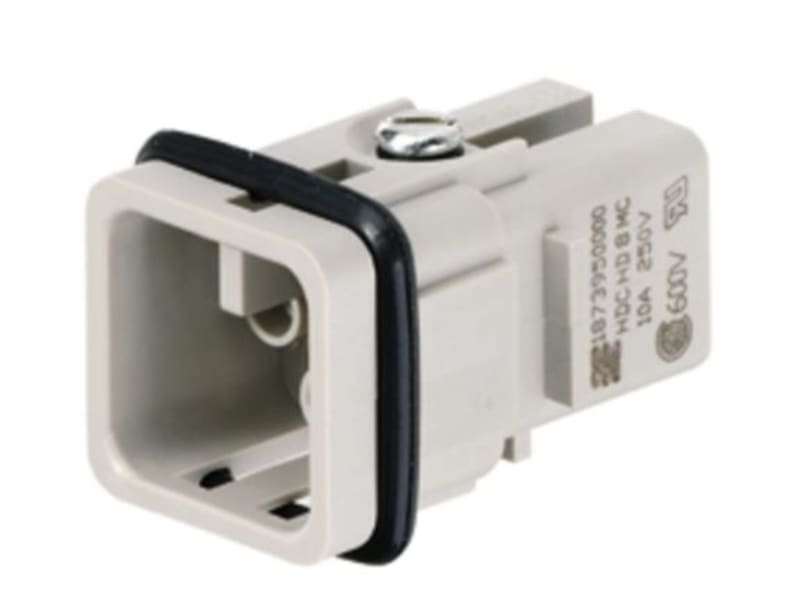

HDC HD 8 MC (3145165059)
Part number3145165059EAN / GTIN4008190299262HS code8547.20
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Weidmüller 3145165059 HDC HD 8 MC.
Technical Specifications
- Manufacturer part number (MPN)
- 3145165059
- EAN / GTIN
- 4008190299262
- Sales unit
- pcs
- Width
- 21 mm
- Height
- 34 mm
- Depth
- 21 mm
- Rated voltage
- 50 V
- With wire protection
- No
- Number of poles
- 8
- Contact type
- Pin
- Operating temperature
- -40–125 °C
- Rated surge voltage
- 800 kV
- Type of electric connection
- Crimp connection
- Material of contact surface
- Silver
- Pollution degree
- 3
- Contact insert without contacts
- Yes
- Connectable conductor cross section solid-core
- 0.14–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.14–2.5 mm²
- With protective conductor
- No
- Material contact
- Other copper alloys
- Material connector insert
- Thermoplastic
- Rated current In
- 10 A
- Material of contact insert
- Thermoplastic
- Number of power contacts
- 8
- Country of origin
- China
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 4008190299262
- SAP 1200564088
- Code 83009372
Product Documentation
Document preview: HDC HD 8 MC (3145165059) — Specification sheet
