Weidmüller

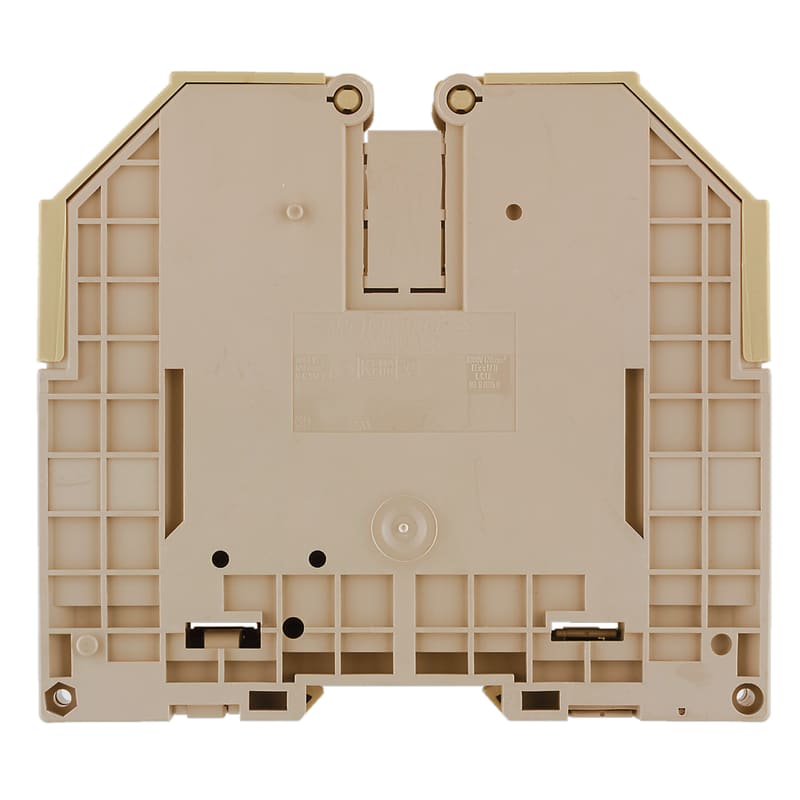

DIN-RAIL Terminal WDU 70
Part numberWDU 70/95EAN / GTIN4008190105990HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Weidmüller WDU 70/95 Feed-through terminal block, Screw connection.
Technical Specifications
- Manufacturer part number (MPN)
- WDU 70/95
- EAN / GTIN
- 4008190105990
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 13.3–16 mm²
- Connectable conductor cross section multi-wired
- 13.3–120 mm²
- Rated current In
- 232 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 27 mm
- Width/grid dimension
- 27 mm
- Height
- 132 mm
- Depth
- 107 mm
- Length
- 132 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- No
- Colour
- Beige
- Internally connected stages
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190105990
- SAP 1000036865
- Code 8770060
Product Documentation
Document preview: DIN-RAIL Terminal WDU 70 (wdu 70/95) — Specification sheet
More from Weidmüller
Weidmüller
AS2C 2.5 PE
Weidmüller
TS 15X 5,5X2M RAIL Perforated
TS 15X5/LL 2M/ST/ZN
Weidmüller
Bolt Terminal - WFF 300/AH
1029700000
Weidmüller
Bolt Terminal - WFF 120/AH
1029500000
Weidmüller
END Ferrule 25,0/30 Brown
H25,0/30 BR
Weidmüller

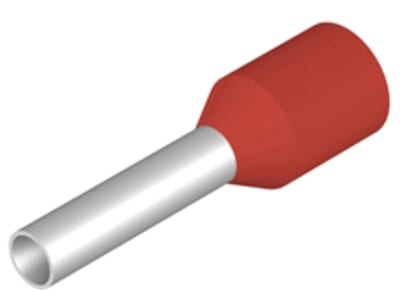

END Ferrule 1,5/16 RED
H1,5/16 R
Weidmüller

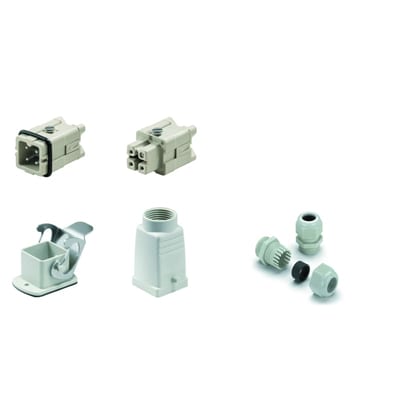

HDC-KIT-HA 04.406 M (hdc Kit HA 04.406 M)
HDC Kit HA 04.406 M
Weidmüller

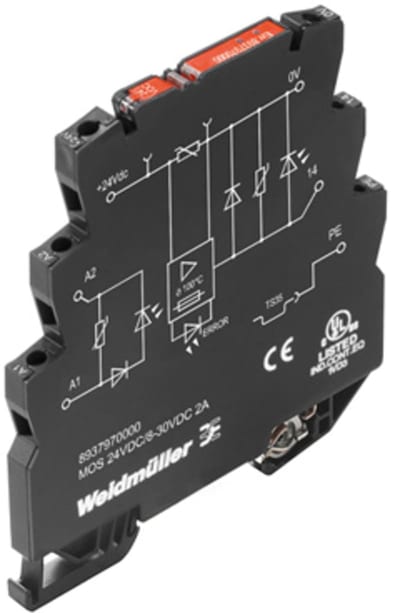

Weidmüller MOS 24VDC/8-30VDC 2A
