Weidmüller
WSI6LD10 - 36 AC/DC (wsi 6/LD 10-36V DC/Ac)
Part numberWSI 6/LD 10-36V DC/ACEAN / GTIN4008190076115HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

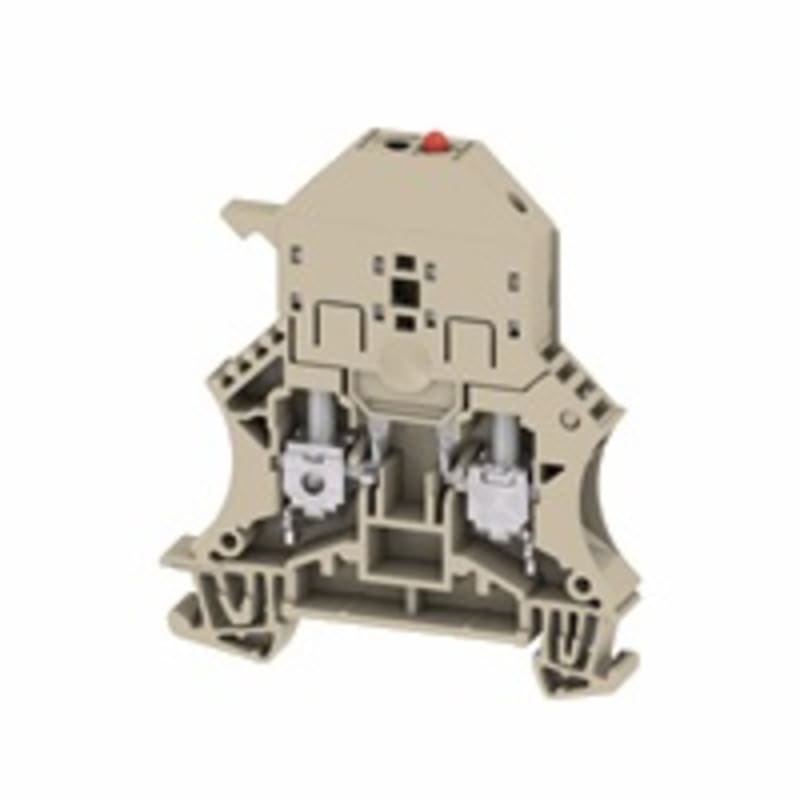

Weidmüller WSI 6/LD 10-36V DC/AC.
Technical Specifications
- Manufacturer part number (MPN)
- WSI 6/LD 10-36V DC/AC
- EAN / GTIN
- 4008190076115
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Type of fuse insert
- G-fuse 5x20 mm
- Type of fuse holder
- Swivelling
- Type of indication element for defect indication
- LED
- Supply voltage for defect-indication
- 36 V
- Voltage type for defect indication
- AC/DC
- Connectable conductor cross section solid-core
- 0.5–10 mm²
- Connectable conductor cross section multi-wired
- 0.5–10 mm²
- Rated current In
- 6.3 A
- Rated voltage
- 36 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Mounting method
- DIN rail (top hat rail) 35 mm
- Connection position
- Sideways
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 7.9 mm
- Width/grid dimension
- 7.9 mm
- Height
- 60 mm
- Depth
- 71.5 mm
- Closing plate required
- Yes
- Length
- 60 mm
- Colour
- Beige
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190076115
- SAP 1000062475
- Code 8922977
Product Documentation
Document preview: WSI6LD10 - 36 AC/DC (wsi 6/LD 10-36V DC/Ac) — Specification sheet
